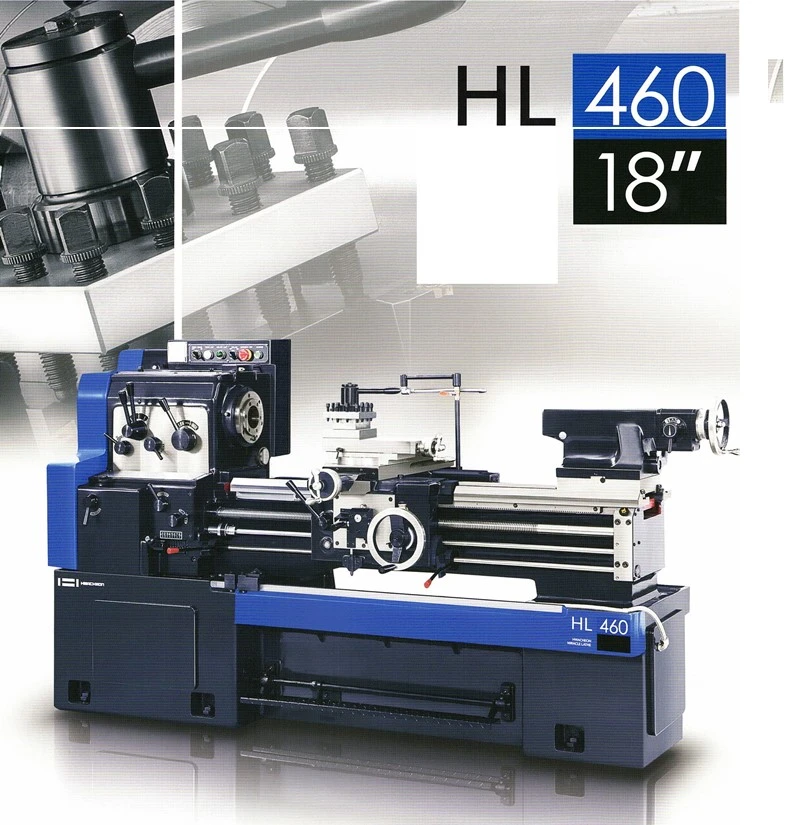

18" X 40" Whacheon Engine Lathe Model HL 460

Swing Over Bed Ways................................18"
Swing Over Cross Slide.............................11"
Swing In Gap.......................................26-7/8"
Gap Length.........................................10-5/8"
Bed Width..........................................16-1/2"
Center Distance....................................40"
Spindle Hole.......................................2-3/64"
Spindle Speeds.....................................32 To 1,800 Rpm's
Spindle Nose.......................................D1-6
Chuck Size.........................................No
Feeds Cross........................................0.00015 To 0.0212 I.P.R.
Feeds Long.........................................0.0014 To 0.0196 I.P.R.
Threads Inch.......................................4 To 80 T.P.I.
Threads Metric.....................................25 To 7 MM
D.P................................................8 To 112 T.P.I.
Module.............................................05 To 3.5 T.P.I.
Tail Stock Quill Diameter..........................3"
Tail Stock Quill Travel............................6"
Tail Stock Taper...................................# 4 Morse
Main Motor.........................................7.5 Hp.
Machine Dimension..................................R-L 96" XF-B 48"
Machine Height.....................................48"
Weight.............................................4,557 Lbs.
Coolant Pan Only...................................Yes
Thread Dial........................................Yes
Hardened And Ground Ways...........................Yes

Optional:
Follow Rest........................................$625.00
Standard Steady Rest...............................$975.00
Oversized Steady Rest (6"To10")....................$2,550.00
Telescopic Taper Attachment........................$4,595.00
Telescopic Taper Attachment Installation...........$1,250.00
Chuck Size 10" 3-Jaw D1-6..........................$2,350.00
Chuck Size 12" 4-Jaw D1-6..........................$2,450.00
Newall 2 Axis 2 DRO System.........................$3,450.00
DRO Installation...................................$950.00

Price subject to change without notice.
