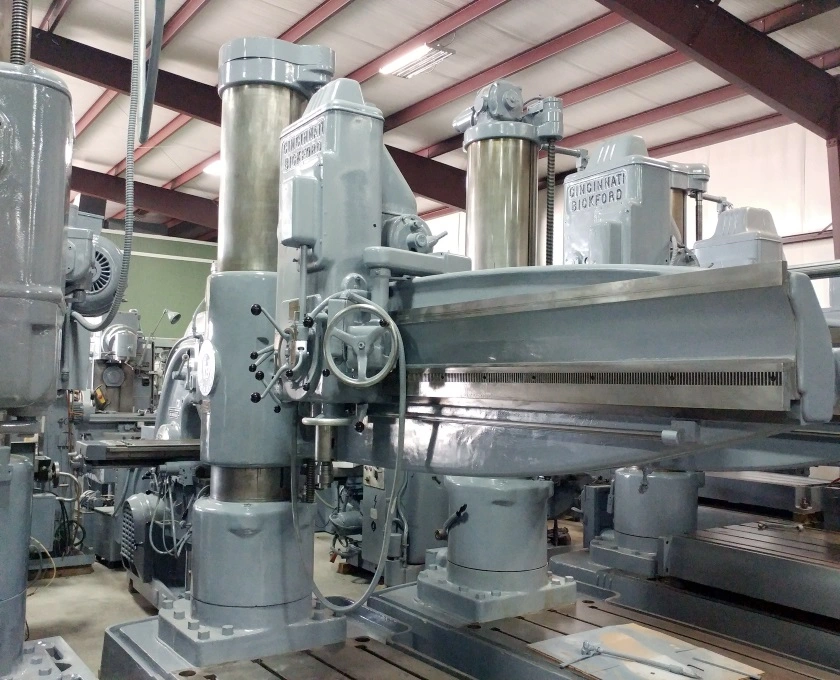

Used Cincinnati Bickford 8'X19" Radial Drill
Arm Size.....................................8'
Column Diameter..............................19"
Maximum Height Under Arm.....................72"
Spindle Speeds...............................10 To 1,250 Rpm's
Spindle Taper................................# 6 Morse
Spindle Travel...............................24"
Drill Capacity...............................5/8" To 4" Diameter
Spindle Diameter.............................4"
Spindle Feeds................................0240 To .125 I.P.R.
Spindle Tap Leads............................8, 11-1/2, 14,18,20 &27
Main Motor...................................20 Hp.
Machine Dimensions...........................R-L 12' X F-B 96"
Height.......................................11'
Weight.......................................34,000 Lbs.
Working T- Slotted Base......................56" X 8' X 12"
Power Clamp..................................Yes
Power Elevation..............................Yes
Power Rapid Traverse To Head.................Yes
Push Button Controls.........................Yes
Coolant......................................Yes
Note: Machine has been cleaned, painted and cycled.
The column does have scoring has seen in the photos.
Used Cincinnati Bickford 8'X19" Radial Drill
Imperial
| Arm Length | 8' |
| Column Dia. | 19" |
| RPM | 1,250 RPM |
| Power | 20 hp |
| Dimensions | R-L 12' X F-B 96"X 11' High |
| Weight | 34,000 Lbs |
Arm Size.....................................8'
Column Diameter..............................19"
Maximum Height Under Arm.....................72"
Spindle Speeds...............................10 To 1,250 Rpm's
Spindle Taper................................# 6 Morse
Spindle Travel...............................24"
Drill Capacity...............................5/8" To 4" Diameter
Spindle Diameter.............................4"
Spindle Feeds................................0240 To .125 I.P.R.
Spindle Tap Leads............................8, 11-1/2, 14,18,20 &27
Main Motor...................................20 Hp.
Machine Dimensions...........................R-L 12' X F-B 96"
Height.......................................11'
Weight.......................................34,000 Lbs.
Working T- Slotted Base......................56" X 8' X 12"
Power Clamp..................................Yes
Power Elevation..............................Yes
Power Rapid Traverse To Head.................Yes
Push Button Controls.........................Yes
Coolant......................................Yes
Note: Machine has been cleaned, painted and cycled.
The column does have scoring has seen in the photos.
