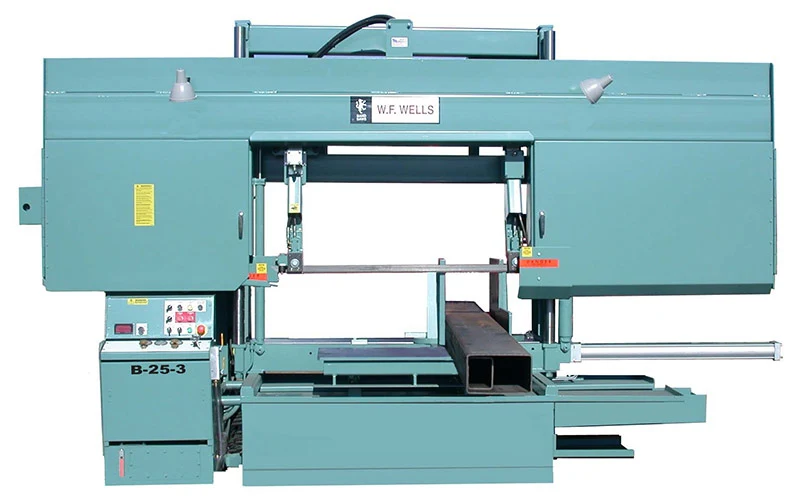

W.F. Wells Model B-25-3 25"X25" Horizontal Saw

Maximum Capacity Round @ 90 Degrees 25"
Rectangular Maximum Cap. Height @ 90 Degrees 25"
Rectangular Maximum Cap. Flat @ 90 Degrees 40"
Maximum Capacity Round @ 45 Degrees 24"
Rectangular Maximum Cap. Height @ 45 Degrees 25"
Rectangular Maximum Cap. Flat @ 45 Degrees 24"
Weight Capacity 15,000 Lbs.
Blade Speed 60 To 500 SFPM
Blade Size 2" X .063" X 26'6"
Blade Guides Spring Tensioned Carbide Blocks W/ Roller Back
Blade Tension Hydraulic
Band Wheel Size 26"
Vise Hydraulic
Blade Drive 15 Hp. AC Vector Drive
Sawing Force 0-1,000 Lbs.
Coolant Capacity 15 Gallons
Hydraulic Capacity 20 Gallons
Hydraulic Drive 5 Hp.
Work Height 28"
Out-Feed Table 24" X 40"
Vise Jaw Height 17"
Machine Dimensions Length X Width X Height 170" X 52" X 100"
Shipping Weight 7,000 Lbs.
Blade Break / Stall Switch Yes
Hydraulic Positioned Guide Arm Yes
Hydraulic Powered Blade Brush Yes
Blade Tension Indicator Yes
Electronic Door Interlocks Yes

Prices and Specifications Subject To Change Without Notice:
Optional:
208-60-3 Order Number 0010710
230-60-3 Order Number 0010711
460-60-3 Order Number 0010712
575-60-3 Order Number 0010713
Desription:..................................Order Number......Price
Laser Shadow Line............................00565325..........$2,250.00
Out Board Vise...............................005623............$8,225.00
Discharge Work Table 40" Width X 56" Length..0056225...........$4,750.00
Hydraulic Chip Conveyor, Auger Type..........0056230...........$4,650.00
Out Board Vise With Hydraulic Hold Down......0056231...........$13,985.00
Hydraulic Hold Down, Saw Vise................0056064...........$3,925.00
Non-Powered Conveyor 40" X 5'................0050188...........$3,460.00
Non-Powered Conveyor 40" X 5'................0050182...........$6,375.00
Hydraulic Powered Conveyor 40" X 10'...........................$14,500.00
High Speed Drive & Guides (1-1/4" Blade) 500 To 3,000 SFPM.....$6,450.00

Prices and Specifications Subject To Change Without Notice:
