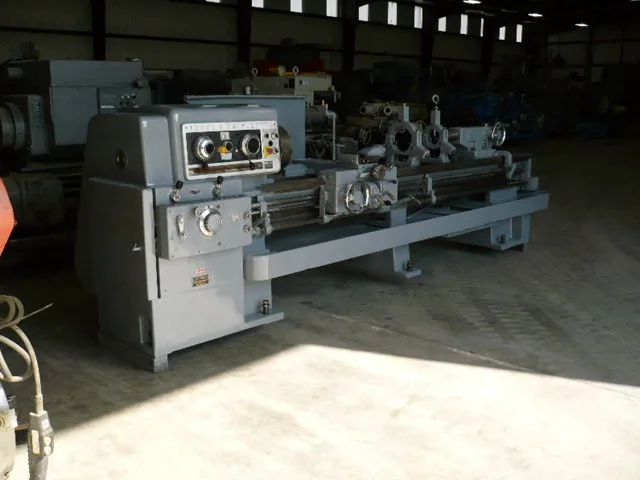

Used 1970 LODGE & SHIPLEY 1610 POWERTURN | Lathes, Engine

Swing Over Bed Ways.................................18"
Swing Over Cross Slide..............................10"
Center Distance.....................................102"
Spindle Hole........................................1750 "
Spindle Speeds (24).................................21 To 1,740
Spindle Nose........................................L-1
Chuck Size..........................................15" 4 - Jaw
Feeds...............................................0.0030 To .0312 I.P.R.
Threads Inch........................................4 To 256 T.P.I.
Tail Stock Quill Diameter...........................2-5/8"
Tail Stock Quill Travel.............................8"
Tail Stock Taper....................................# 4 Morse
Main Motor..........................................15 hp. 440
Machine Floor Space.................................R-L 192" X F-B 60"
Height..............................................60"
Weight..............................................8,950 Lbs.
Coolant Pan.........................................Yes
Threads Metric......................................No
Taper Attachment....................................Yes
Thread Dial.........................................Yes
Steady Rest 5" & 7-1/2" Brass Pad Type..............Yes
Hardened And Ground Way.............................Yes
