Used 1966 WARNER & SWASEY 4A M-3580 Lot 13 | Lathes, Turret Saddle Type
Have one to sell?
ConditionUsed
1 available

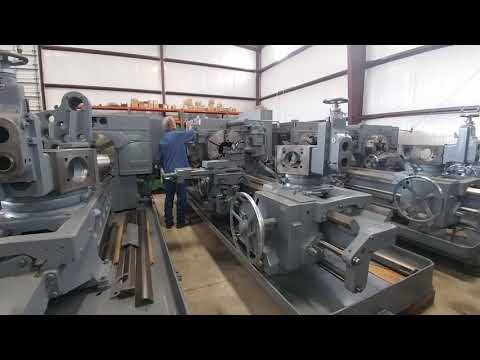

4 A Used Warner & Swasey Square Head Saddle Type Turret Lathe
Swing Over Ways 28-1/4"
Swing Over Cross Slide Carriage 22"
Spindle Hole 12-1/2
Center Distance 62"
Spindle Speeds 20 To 526 Rpm's
Spindle Nose A-15
Chuck Size (New Heavy Duty) 24" 4-Jaw New Gator
Feeds Cross .004 To .090 I.P.R.
Feeds Long. .005 To .167 I.P.R.
Main Motor 75 / 37.5 Hp.
Floor Space Right To Left 20'
Floor Space Front To Back 7'
Machine Height 80"
Weight 22,000 Lbs.
Short Flange Holder 2
Long Flange Holders 1
Tool Post 4 Way On Front Yes
Fixed Rear Turret Yes
Rapids Front & Rear Yes
Power Compound Front Apron Yes
Taper Attachment On Front Apron Yes
Slide Tool Holders 2
Coolant Yes
Note: Machine has been reconditioned.
Optional:
Chuck Size (Heavy Duty Power Wrench) 28" 3-Jaw
Power Wrench Price $ 16,500.00
Note Reconditioning: Machine's front & rear aprons and rapid traverse box have been reconditioned. Rapid traverse drive box reconditioned, new bearings in main motor. New feed and rapid shafts. Headstock cleaned and flushed, new filters and oil. New lockdown pin and bushing in hex and square turret. New nut and screw in cross slide and hex turret. Gibs reworked and refitted. New 24"4-jaw Gator chuck with reconditioning. It is recommended that you re-bore the flange tool holders on the rear turret to ensure they are on center once the machine is level. Machine has been cleaned, painted, and cycled. Machine may be seen under power with proper notice.
