Rebuilt 3.9" Tos Model W100 A Table Type Horizontal Boring Mill

Spindle Size..........................................3.93"
Spindle Taper.........................................ISO 50
Spindle Speeds........................................7 To 1,120 Rpm's
Spindle And Head Stock Rapid Traverse.................1,600 IPM
Spindle Feeds.........................................0.0008 To .025
Spindle Travel W Axis.................................35"
Spindle Head Travel Up & Down Y Axis..................44
Saddle Travel In & Out Z Axis.........................49"
Rotary Table Size.....................................49" X 49"
Rotary Table Weight...................................6,000 Lbs.
Rotary Table Feeds....................................0.056 To .025
Cross & Longitudinal Feeds............................0.02 To .025
Table Travel Cross A Axis.............................63"
Facing Head Diameter..................................23.6"
Facing Head Slide Travel..............................8.276"
Max Diameter Of Facing Head...........................35.43"
Facing Head Speeds....................................7.1 To 224 I.P.M.
Main Motor............................................15 Hp.
Dimensions............................................R-L 265" X F-B 136"
Height................................................120"
Weight................................................30,850 Lbs.

FEATURES:
Machine with modern Motor and Electrics

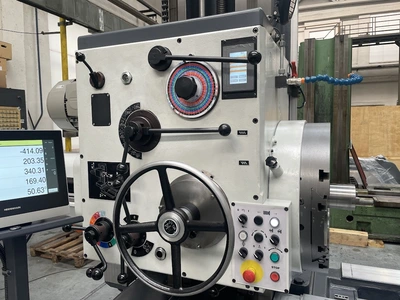

5 Axis DRO TS MAX
Scales on X, Y, Z and W-Axis
B-Axis measurement with a built-in rotary encoder
and 4x90° Optical Readout
Long life Spindle and Spindle Bearings
Central Lubrication System for All Axes
24 Inch Facing Head With Maximum Face Milling Diameter 35.5”
Facing Head
CE Electrical Specifications
SCOPE OF MACHINE BUILD:
Headstock – spindle with ISO 50
Spindle with coupling drive
Scraping of gibs, new fixed pin
Rocker arm, fork, spindle keys
Striking lever, spring, wedges, dispatches
Metrical ruler
Manual wheel
Power tool clamping system, including hydraulic system

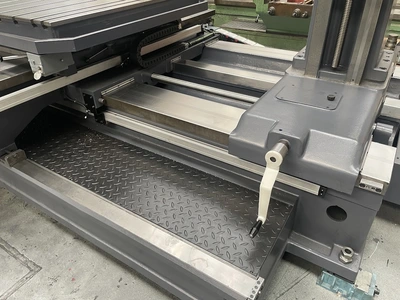

Way surfaces Z, Y, X are ground, mating slides are milled and surface,
gibs ground and scraped
Sliding surface of headstock are scraped
Screws, bolts, bearing houses
Re-turning of clamping area of table
Wipers of sliding areas
Electrical switchboard and all interconnections, energy grits
Lubrication distribution, including feeders
Surface treatment of machine
RAL standard (blue / white color)
Tailstock (Only with motoric mechanical clamping)
Delivery (DDP), without rigging at customers premises
Delivery time – Pre-Acceptance in the Factory
Installation
Warranty (1-Year spare parts & labor)

Options Not Included In Sales Price:
Right angle head FP100/40................................$15,470.00
Boring bar 80x2500 (Delivery 2 months)...................$11,200.00
Boring bar 100x250 (Delivery 2 months)...................$11,700.00
Short knife holder ND 100 (Delivery 2 months)............$2,500.00
Long. telescope knife holder TD 50/4 (Delivery 2 months) $3,100.00
Coolant System...........................................$3,200.00

Additional Buyer Responsibility
Seller is not responsible for Machine Foundation:
The design, materials, and the execution of the foundation.
Any building conversion necessary for installation of the
machine Waterproofing of the foundation or adjacent areas.
Grouting materials or it´s installation to anchor the machine
Covering and equipping of the supply channels or walking platforms.
Power supply lines and disconnect to the required transformer
(not supplied) or from there to the machine Technological tools.
All liquids including all that is necessary for cooling systems,
hydraulic units, and oils.
Buyer should have these ready in specified type and sufficient
quantity at the beginning of installation.
Cranes, man lifts and other hoisting equipment with the relevant
operators and other materials (cables, hooks, poles, etc.) must
be ready and available for Seller´s personnel whenever requested.

Machine Acceptance at Buyer´s Premises:
Acceptance will be carried out immediately after completion of
the installation at the Buyer’s premises.
Scope of acceptance:
Inspection and Presentation of the Machine
Check of machine completeness according to the order Check of
documentation completeness
Functional Tests of the Machine
Test of all functions of the machine including all options
Geometrical test on a complete machine set-up using standard's
geometric protocols Signature of the Acceptance handover protocol.
by the Buyer

Installation Option: Please call for price:
Customer is responsible for unloading the machine from container
and providing use of a 7.5-ton overhead crane for reassembly and
electricity and air to machine. N&R Machine will reassemble on
customers floor.

WARRANTY:
One Year parts only if the machine is installed by customer.
One Year Warranty on Parts and Labor with Installation by
Lucas / Fermat.
Twelve (12) months from signature of Acceptance Handover
Protocol.
Seller will at its sole and exclusive discretion, either replace
or repair any machine or part defective in workmanship or material,
at no charge to the Buyer.
Transportation to customers port is covered by Seller.
All warranty repairs must either be performed by or authorized by
Seller.
To obtain warranty service, Buyer has to contact Seller´s Service
Department in written form
and include information about serial number, date of acceptance
handover and description of faults with photos or other documentation.
Official Service contact information is part of machine Manual.
Materials or parts alleged to be defective shall be returned to Seller,
at Seller’s request.
After the warranty repair or replacement of a defective part, Seller
warranty for such part shall continue for ninety (90) days or for
the remainder of the Original Limited Warranty, whichever is longer.
Warranty Limitations
This warranty shall remain in effect only if the machine is used
and maintained in accordance with all operating and maintenance
instructions set forth in the manuals and instruction
sheets furnished by Seller.
Seller shall have no liability to repair or replace defective
parts until the Buyer has fulfilled their payment obligations.
No allowance will be made for repairs or alterations made without
Seller’s prior written consent or approval.
The limited warranty provided by Seller excludes the following:
Damage, malfunction, or failure caused by or resulting from
improper maintenance, misuse, neglect, accident or any other
cause beyond the control of Seller
Damage, malfunction, or failure caused by modification of the
machine (mechanical or electrical) without written authorization
by Seller.
Damage, malfunction or failure caused by installation or use of
accessories or peripherals not purchased through or authorized
in writing by Seller.
Paint, batteries, filters, fluids, fuses, light bulbs, or
any commonly expendable item. Damage, malfunction,
or failure caused by common wear or force majeure Damage to machines
and/or components while being transported from Seller warehouse or
facility to destination.Accessories or peripherals not manufactured
by Seller, which shall be subject only to whatever warranty that is
supplied by the manufacturer of such product.
CNC control, spindle motors and servo motors, spindle, and servo
drives, which are covered by manufacturer warranty.
Parameters, functions, or performance which are not specified in
the machine offer or other technical documentation.

Commercial Terms:

Offer Validity Subject to Prior Sales
Packing
Overseas Packing
Terms of the Offer
nstallation
Standard Installation Included in the Price
The offer is non-binding and is subject to confirmation as well
as prior sale.
In case of order placement, our confirmation of the order
constitutes the final sales contract. Dependent on further engineering
developments of our products, we reserve the right to change technical
details of the equipment supplied.

Payment Conditions:
90% advance payment in accordance with the invoice due within 7 days
after placing the order balance is due when up and running on customers
floor.

In case the installation and/or final Acceptance/handing over of the
equipment is delayed for reasons due to the Buyer, such as delay or
non-conformity of foundations, or any other reason, the Buyer will
be responsible for all the consequent extra costs incurred by Seller.
In that instance, balance payment will be requested 30 days after
machine arrival to the Buyer’s location.
Seller does not accept any penalty in the case of delay in deliveries
due to delayed incoming payments.
Retention of Title
The ownership of the goods will be transferred to Buyer after full
ayment of the contract.
Force Majeur
Seller is not liable for failure to perform the party’s obligation
if such failure because of Acts of God (including fire, flood,
arthquake, storm, hurricane or other natural disaster), war, invasion,
act of foreign enemies, hostilities (regardless of whether war is declared),
civil war, rebellion, revolution, insurrection, military or usurped power
or confiscation, terrorist activities, nationalization, government sanction,
blockage, embargo, labor dispute, strike, lockout or interruption, or failure
of electricity or telephone service.
