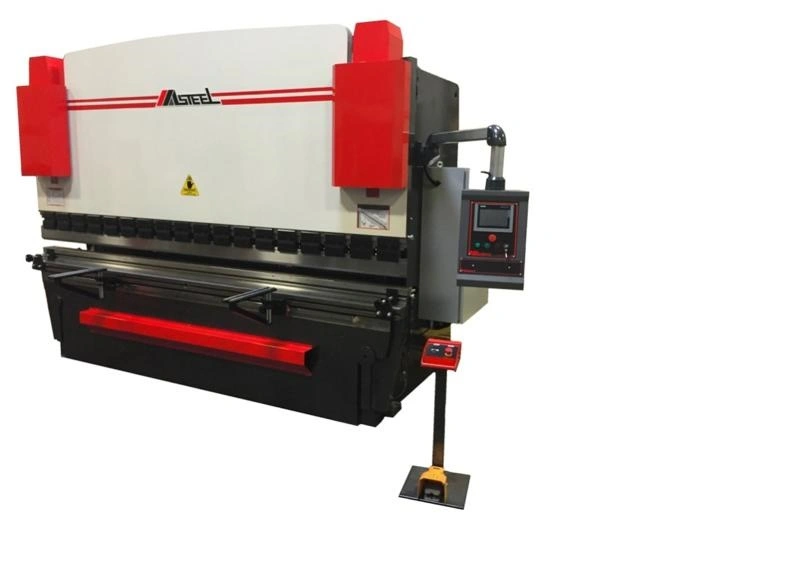

12' X 190 Ton CNC Masteel Hydraulic Press Brake Model MBHSA-12190
Masteel CNC Hydraulic CNC Press Brake Model MBHSA-12190
Max. Capacity Tons.........................................190 Ton
Max. Bending Length........................................12'
Distance Between Frames....................................122"
Height Of Bed..............................................36"
Depth Of Throat............................................12'-3/4"
Length Of Ram Stroke.......................................8"
Fast Approach Speed........................................237 IPM
Press Speed................................................25 IPM
Fast Return Speed..........................................245 IPM
Max. Open Height...........................................17-1/8"
Back Gauge Travel..........................................28"
Dimensions Length X Width..................................151" X 70"
Machine Height.............................................105"
Weight.....................................................24,200 Lbs.
Main Motor.................................................15 Hp.
Options Include With This Stock Machine:
Wila Style CNC Mechanical Crowning.........................$7,290.00
CNC R Axis.................................................$7,340.00
Power Z1 & Z 2 Control.....................................$3,450.00
Quick-Set Sheet Supports...................................$1,520.00
Back Gauge Finger Assembly.................................$610.00 Each
Back Gauge Finger Assembly.................................$1,220.00 For Two
Option: Prices subject to change without notice.
Wila Style CNC Mechanical Crowning.........................$7,290.00
CNC R Axis.................................................$7,340.00
Back Gauge Finger Assembly.................................$610.00 Each
Back Gauge Finger Assembly.................................$1,220.00 For Two
Interlock Back Guard.......................................$1,520.00
Power Z1 & Z 2 Control.....................................$3,450.00
Quick-Set Sheet Supports...................................$1,520.00
Electrical 440 Or 600 Volt.................................$1,020.00
Safety Light Curtain.......................................$6,080.00
Option in red are included with this machine.
Control Features
MASTEEL AMERICA CORP
Standard SIEMENS TP-700 control with 7” touch screen display.
SIEMENS CNC control with Y1/Y2/X/R/Z1/Z2 position control, R and Z1/Z2 axis as options.
Ram bending position control – Y1/Y2 axis:
Y1, Y2 programmable independently in angle or position.
Ram tilt capacity at ±0.5”.
Bosch-Rexroth closed-loop proportional hydraulic position control: repeatability at ±0.0006”.
Servo driven back gauge position control:
•Standard CNC back gauge: Speed at 400 IPM; Repeatability at ± 0.00’’.
•Optional R axis CNC control.
•Optional CNC Z1/Z2 axis or power operated Z1/Z2 axis.
•Programmable back gauge retract feature.
•3-step finger position with automatic offset on X axis.
Two way angle corrections - allow inexperienced operator to achieve desired angles without multiple test bends.
•Input of the difference from desired angle to test bending, control will automatically adjust the bending position to achieve desired angle.
•Adjust bending position with Y axis incremental per degree calculated by control system.
Dual ram position feedback with hydraulic synchronized control allow bending at one end of brake for deep box
Tool memory for quick recall of tool setup
200 job memory, with an average of 30 bends per program.
Programmable tonnage control
Programmable ram delay and programmable tonnage at the bending position for bump bending or heavy bending applications
Automatic maintenance schedule reminders
Operating prompts and troubleshooting messages
Inch / MM conversion
Standard SIEMENS TP 700 Control
Ram speed control
Rapid approach and return speed.
Slow bending speed for accuracy control.
Programmable bending speed.
Ram stroke control:
Programmable ram top stop limit for more efficient production.
Programmable slow working speed position.
Programmable second stop position.
Four Operating Modes:
Jog mode: Inching control of the ram for tool setup.
Single mode: One full bend cycle per control input.
Double stop mode: Ram stop above material and excellent for sight bend operations.
Follow bend mode: Ram jogging down/up with foot paddle and easy to follow bending and ram return on large sheets or with crane handling.
Operating Function
Ram speed control:
•Rapid approach and return speed.
•Slow bending speed for accuracy control.
•Programmable bending speed.
Ram stroke control:
•Programmable ram top stop limit for more efficient production.
•Programmable slow working speed position.
•Programmable second stop position.
Four Operating Modes:
•Jog mode: Inching control of the ram for tool setup.
•Single mode: One full bend cycle per control input.
•Double stop mode: Ram stop above material and excellent for sight bend operations.
•Follow bend mode: Ram jogging down/up with foot paddle and easy to follow bending and ram return on large sheets or with crane handling.
Standard Equipment
Two axis back gauge:
•One axis CNC control: X axis
•One axis manual adjustment: R axis
•3-step precision-made back gauge fingers
Fully equipped with Masteel tooling and clamping system:
•Floating-adjustable die clamping system for various die applications. The fine alignments of horizontal tolerances in relation to the back gauge is for producing accurate flange lengths
•Masteel reversible punch holder accommodates both American and European punches
•Adjustable wedges on punch holder provide fine alignments for vertical tolerances in the press brake and tooling, which easily and effectively correct accumulated machine tolerance across the length of the whole machine, significantly extend the life span of press brakes.
•Hardened and precision ground tool steel gooseneck punch: 53-58RC; 100Ton/M (33Ton/Ft) capacity.
•Hardened and precision ground Masteel 8 openings, 4-way die: HB190-260.
Deep throat depth with swing up clearance allows for full length bend over bed (?, for) up to 12”.
2 front support arms
Optional Equipment
Central lubrication
Central lubrication
Interlock back guard
Special top and bottom tools
460 or 600V electrical
Hydraulic oil cooler
NEMA 12 electrical cabinet
WILA hydraulic top and bottom tool holding system
WILA type manual or CNC crowning system
CNC R axis
CNC Z1/Z2 axis or power operated Z1/Z2 axis
Safety light curtain
Quick-set front sheet support (2 sets)
Special throat depth (500, 600 and 750 mm)
Laser protection system for die area
