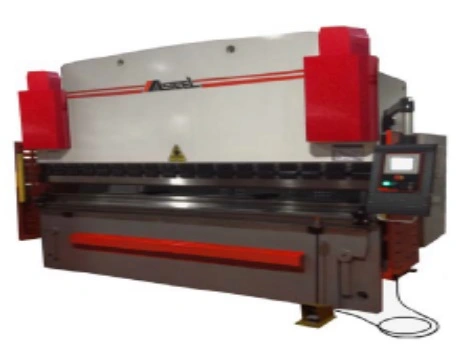

New MASTEEL MBHA-24320 | New Machinery, Press Brake

STANDARD CONTROL FEATURES:

Standard SIEMENS TP-700 control with 6" Touch Screen display
SIEMENS Two Axis CNC controls on back gauge and ram bending position
Bosch-Rexroth Closed-loop proportional Hydraulic position control:
repeatability standard at ± 0.0006", optional at ± 0.0004 Backgauge position control:
Standard CNC backgauge: speed at 200 IPM as per Demo Video; repeatability at ± 0.003" Programmable backgauge retract feature
CNC bending angle control Only inputs of bending angle, material thickness & die opening
Two-way bending calibration controls -allow inexperienced operator to achieve desired angles with no time consuming multiple test bends. Save on costly skilled labour and test bend material. By correction of test-bending angle, control system automatically sets itself to achieve desired angle. By correction of bending position calculated automatically by control system. Dual ram position feedbacks with hydraulic Synchronized control compensates for uneven force on the bend
Tool memory for quick recall of tool setup
200 Job memory with average of 30 bends in each program
Programmable pressure control
Programmable ram delay control at bending position under adjustable pressure for bump bending or special heavy bending application
Maintenance plan auto-prompts service schedule
Operating hour meter
Operating prompts and Trouble shooting messages
Inch / MM conversion

OPERATING FUNCTION:

Ram speed control:
Rapid approach and return speeds insure more efficient production. Slow bending speed for better control of bending accuracy
Ram stroke control:
Programmable ram top stop limit for more efficient production
Programmable slow working speed position and second stop position
Four Operating Modes:
Jog mode: inching control of ram for tool setup
Single mode: one full bend cycle per control input.
Double stop mode: excellent for sight bend operations.
Follow bend mode: easy to follow bending and ram return on large sheet or with crane handling

QUALITY & VALUE STANDARD EQUIPMENT:

Two axis back gauge
One axis CNC control: X axis
One axis manual adjustment: R axis
Precision-made back gauge fingers
Fully equipped with Masteel tooling and clamping system.
Floating-adjustable die clamping system for various die application
Hardened and precision ground tool steel gooseneck punch: 53-58RC;100Ton/M(33Ton/Ft) capacity
Hardened and precision ground Masteel 7 openings, 4-way die: HB190-260.

OPTIONAL EQUIPMENTS:

KV-2004 or Delem control DA-56 or up model.
Offline program software for KV-2004 or Delem control.
Servo CNC back gauge with ball screw and linear guide way.
Manual WILA Anti-Deflection system.
Safety light curtain.
Laser protection system for die area.
Hydraulic top and bottom tool holding system.
Quick- set front sheet support arm with linear bearing rollers.
Hydraulic oil coolant.
One-shot slide greasing system.
Special throat depth (500,600 and 750 mm).
Special top and bottom tools.

AVAILABLE MBHA-GUAGE-R MBHA ,MBHSA ONLY

CNC R axis on A and SA model....................................................$6,380.00
MBHS-GUAGE-Z MBHS MODEL ONLY
CNC Z1/Z2 axis on MBHS-GUAGE-X servo CNC back gauge.....$9,350.00
MBHS/A-LIGHT CURTAIN Safety light curtain..............................$5,280.00
BACK GUARD ALL MODELS Interlock Back Guard......................$1,320.00
Z1 Z2 WITH JOY STICKS.............................................................$3,450.00
ELECTRIC 440/600V AVAILABLE ALL MODELS
QUICKSET ARM AILABLE ALL MODEL
Electrical 440 or 600V....................................................................$880.00
Quick-set Front sheet support arm (2 sets)......................................$1,320.00

HY CROWNING AVAILABLE MBHSA ,MBHS ONLY
Hydraulic crowning in bed for automatic anti- deflection
according to the tonnage................................................................$12,672.00

CENTRAL LUBE AVAILABLE ALL MODELS
Central lubrication............................................................................$1,980.00
