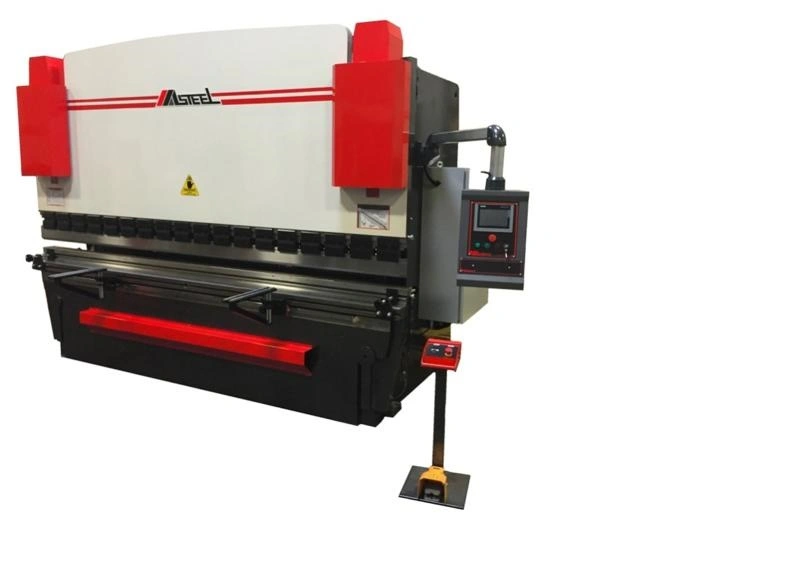

New MASTEEL MBHSA-12280 | New Machinery, Press Brake

Programmable bending speed.
Ram stroke control:
Programmable ram top stop limit for more efficient production.
Programmable slow working speed position.
Programmable second stop position.
Four Operating Modes:
Jog mode: Inching control of the ram for tool setup.
Single mode: One full bend cycle per control input.
Double stop mode: Ram stop above material and excellent for sight bend operations.
Follow bend mode: Ram jogging down/up with foot paddle and easy to follow bending and ram return on large sheets or with crane handling.

Standard Operating Equipment:

Two axis back gauge:
One axis CNC control: X axis
One axis manual adjustment: R axis
3-step precision-made back gauge fingers
Floating-adjustable die clamping system for various die applications. The fine alignments of horizontal tolerances in relation to the back gauge is for producing accurate flange lengths
Masteel reversible punch holder accommodates both American and European punches
Adjustable wedges on punch holder provide fine alignments for vertical tolerances in the press brake and tooling, which easily and effectively correct accumulated machine tolerance across the length of the whole machine, significantly extend the life span of press brakes.
Hardened and precision ground tool steel gooseneck punch: 53-58RC; 100Ton/M (33Ton/Ft) capacity.
Hardened and precision ground Masteel 8 openings, 4-way die: HB190-260.
Deep throat depth with swing up clearance allows for full length bend over bed up to 12".
2 front support arms

Optional Equipment:

Central lubrication
Central lubrication
Interlock back guard
Special top and bottom tools
460 or 600V electrical
Hydraulic oil cooler
NEMA 12 electrical cabinet
WILA hydraulic top and bottom tool holding system
WILA type manual or CNC crowning system
CNC R axis
CNC Z1/Z2 axis or power operated Z1/Z2 axis
Safety light curtain
Quick-set front sheet support (2 sets)
Special throat depth (500, 600 and 750 mm)
Laser protection system for die area
