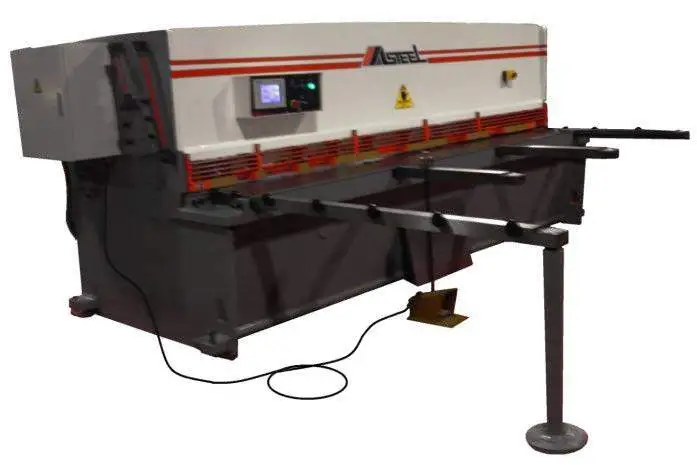

New 10' X 1/4" Masteel CNC Hydraulic Shear Model MSH-10250
Have one to sell?
ConditionNew
1 available
New
New 10' X 1/4" Masteel CNC Hydraulic Shear Model MSH-10250
Standard Control Features:
36” SIEMENS multi-step CNC back gauge: accuracy at ±0.002”.
60 position pre-set back gauge memory for shearing heavy material
or production process with no need of layout or holding material,
then adjusting back gauge.
One-step go-to position control on back gauge.
Auto-swing up back gauge at full travel.
Programmable cutting width control.
Programmable cutting stroke control.
Easy operating control console:
Prompting instruction for easy operation and service
Running status display on control console
Manual/Auto model
Back gauge position
Cutting width
Number of cutting strokes
Blade setup message at power on to prompt operator
Movable Pedestal with Foot Control Switch and Emergency Stop.
Rated Capacity Mild Steel 1/4"
Cutting Length 10'
Throat Depth 5-13/16"
Back Gauge 36"
Front Gauge 48"
Rake Angle 1 Degree 30
Machine Height 70"
Dimensions Length & Width 154" X 68"
Weight 16,100 Lbs.
Main Motor 15 Hp.
Standard Equipment:
Two square arms with stainless steel rules and
disappearing stops:
7 Ft squaring arm on left to square long sheet
material.
4 Ft squaring arm on right to provide even knife
service life on both ends.
Front gauge with adjustable disappearing stops and
stainless steel rules.
4 Ft front support arms.
Ball transfers in table for easily handling heavy
metal.
Ball transfers on front support arms, front gauge
bar and right squaring.
arm.
Shadow light and line for positioning scribed line
Cut-off material sliding tray for easy-collecting
cutting material.
Safety guard
Independent Hold-Downs
Automatically adjust hold-down pressure to various
material. More hold-down.
pressure for heavier cutting and less for delicate
thin material.
Blade Adjustment
Precision variable position quick blade adjustment
ensures proper blade.
clearance for various material thickness and properties
and achieve.
quality cutting.
36’’ CNC Back Gauge
Slide tray for easy collect of cut-off strips.
Heavy-duty structure.
Precision leadscrew with integrated backlash compensation.
Back gauge bar swings up at full travel to allow long
material to go through.
Optional Equipment:
Rear Sheet Support...................................$10,760.00
High Speed Shear Package
1/4" X 10' 15 Full SPM To 24 Full SPM................$2,190.00
1/2" X 10' 15 Full SPM To 19 Full SPM................$2,880.00
CNC In-Feed Table....................................$18,730.00
39" Back Gauge.......................................$1,730.00
575 Volts 3 Phase....................................$1,020.00
Auto Blade Gap Adjustment............................$2,880.00
NOTE: All specifications are approximate, and are not binding
in any way. We endeavour to make information as complete and accurate
as possible. If you notice a discrepancy, please let one our
sales people know so that the error can be changed.
SIEMENS Compact Control System
▪SIEMENS compact control system integrates CNC back gauge, hydraulic and
electronic control in one.
▪Simple and less control components ensure years of quality performance of
Masteel shears.
Accuracy:
Top blade and back gauge with swing movement always have the cutting perpendicular
to the material and bottom blade, then swing away from bottom blade.
There is no jamming the material between the blades and back gauge. Top and down
blade last longer to ensure quality cutting and less maintenance.
Reliability and Functionality:
Masteel Swing bean shear doesn't require relieve angle. The cutting is always
perpendicular to the material and bottom blade.
And also the hydraulic force from the cutting cylinder is applied directly against
cutting load.
There is no cutting load to change the blade clearance from blade deflection or
blade beam mechanism. That allows Masteel shears cut strips.
Quality and Heavy-Duty Structures:
Mono-block type, welded frame and blade beam are optimized by computer-aided
calculation to guarantee the maximum rigidity.
Heavy-duty taper roller bearings are located on cutting lever and support blade beam
rotational movement.
It avoids cutting load transferred along blade beam rotational radius to the supporting
bearings to ensure constant accurate blade clearance.
Quality Components and Structure Design:
▪North-American made hydraulic & electrical system.
▪Standard SIEMENS single-axis CNC controller.
▪Swing beam design for consistent precise cutting quality and low maintenances.
▪Simple hydraulic and electric system for easy service.
▪Low rake cutting angle for minimum distortion of material: 1 30’ on 1/4’’, 3/8’’, 1/2’’ shears.
▪Heavy duty design, rigid stress relieved box construction.
Reliability and Functionality
Masteel Swing bean shear doesn't require relieve angle. The cutting is always perpendicular
to the material and bottom blade.
And also the hydraulic force from the cutting cylinder is applied directly against cutting load.
There is no cutting load to change the blade clearance from blade deflection or blade beam
mechanism. That allows Masteel shears cut strips.
NOTE: All specifications are approximate, and are not binding in any way. We endeavour to
make information as complete and accurate as possible. If you notice a discrepancy, please
let one our sales people know so that the error can be changed.
