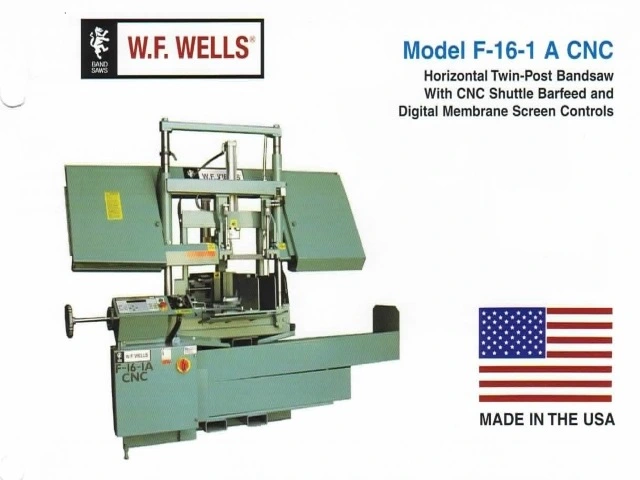

W.F. Wells Model F-16-1A CNC 16"X 18" Horizontal Saw

Specifications
Capacity:
Rectangular at 90@....................................16" High X 18" Wide,
Round.................................................16" Diameter
Weight Capacity.......................................5,000 lbs.
Blade Speed...........................................60-425 SFPM
Blade Size............................................1¼" X .042" X 15'
Blade Guide Roller Guides with........................Carbide Inserts
Vise Air..............................................8½" High
Band Wheel Size.......................................20"
Blade Tension Hydraulic...............................Yes
Voltage Number
Blade Drive Variable Speed, AC Vector.................7.5 Hp.
Sawing Force..........................................0-750 lbs.
Coolant Capacity......................................15 Gallons
Hydraulic Capacity....................................¾ Gallon
Hydraulic Drive.......................................¾ HP Motor
Work Height...........................................35"
Bar Feed Projection Hydraulic.........................0-25" CNC Controlled
Shuttle Indexes.......................................Unlimited
Projection Accuracy...................................+/-.002"
Remnant End...........................................4"
Tipoff Worktable......................................19½" Wide X 15½" Deep
Machine Dimensions....................................R-L 104"X F-B 101"
Height................................................88"
Shipping Weight.......................................4,000 lbs.
Standard Equipment:
CNC Programmable Controller with Color Touch Screen
Fully Automatic Barfeed
500+ Job Selection
Automatic Kerf Compensation
Part Length up to 99999”
Automatic End-of-Cut Shutdown
Digital Blade Speed Indicator
Built-In Coolant System
Variable Vise Pressure
Hydraulic Blade Tension
Bed and Vise Wear Plates
Built-In Fork Lift Pockets
AC Vector Drive
Blade Break/Stall Switch
Electronic Door Interlocks
Machine Diagnostics
Built-In Fork Lift Pockets
Electrics Wired to NFPA 79 Machine Tool Standards

Voltage:......Part Number
208-60-3......0011650
230-60-3......0011651
460-60-3......0011652
575-60-3......0011653
Optional Equipment Not Included In The Price:
OPTIONAL FACTORY INSTALLED ACCESSORIES
Description:...............................Order Number:....Price:
Hydraulic Hold-down, Saw & Bar-feed Vise........0011698.....$5,650.00
Hydraulic Chip Conveyor, Auger Style............0056716.....$5,475.00
Discharge Worktable (20" Wide X 48" Long).......0011683.....$3,050.00
Work Light, Wired In............................0011662.....$375.00
High Speed (1" Blade) 400-3000 SFPM.............0051037.....$7,950.00
Laser Shadow Line...............................0052220.....$3,050.00
Free Standing Roller Stock Conveyors, 6" Centers
21" X 5' X 5,000 lbs. Cap. Distributed Weight...0050252.....$1,850.00
21" X 10' X 10,000 lbs. Cap. Distributed Weight.0050251.....$2,875.00
Consult Factory For Additional Accessories
*Prices and specifications subject to change without notice.
MADE IN USA
