Used SOUTHBEND B-70 P | Drills, Upright

Have one to sell?
800-245-3194
sales@nrmachinesales.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Drills, Upright
Manufacturer:
SOUTHBEND
Model:
B-70 P
Condition:
Good
Stock #:
D481010
Status:
For Sale
Serial #:
905 D

Description

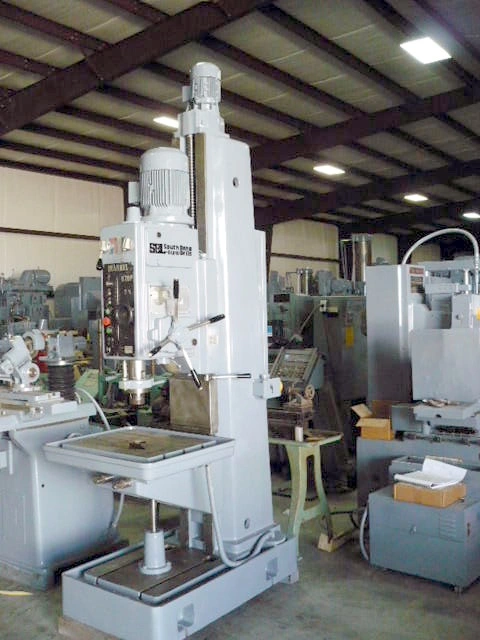

Used Southbend Ibrarmia Geared Head Drill

Spindle Size2.25"57.15 mm
Capacity (Mild Steel)2.125"53.975 mm
Capacity (Cast Iron)2.25"57.15 mm
RPM1,120 RPM1,120 RPM
Power7.5 hp5.6 kW
DimensionsR-L 64" x F-B 68" X 116" HighR-L 64" x F-B 68" X 116" High
Weight4,800 lBS.4,800 lBS.

Table Size 26" X 31"
Vertical Travel Of Table 24"
Center Of Spindle To Box Column 16-3/4"
Spindle To Table Top Maximum 47"
Spindle Size 2-1/4"
Drill Capacity 2-1/4"
Spindle Travel 10.25"
Spindle Taper #5 Morse
Spindle Speeds 62 To 1,120 Rpm's
Spindle Feeds .0039 To .0236 IPR.
Main Motor 7.5 Hp. 440 / 220 /3
Approximate Dimensions Length / Width 64" X 68"
Machine Height 116"
Machine Weight 4,800 Lbs.
Elevating Table Yes
Geared Head Yes
T-Slotted Work Table Yes
Power Head Elevating Motor Yes
Coolant Yes

Overview

Type:
Drills, Upright
Manufacturer:
SOUTHBEND
Model:
B-70 P
Condition:
Good
Stock #:
D481010
Status:
For Sale
Serial #:
905 D

Description

Used Southbend Ibrarmia Geared Head Drill

Specifications

Imperial

Spindle Size2.25"
Capacity (Mild Steel)2.125"
Capacity (Cast Iron)2.25"
RPM1,120 RPM
Power7.5 hp
DimensionsR-L 64" x F-B 68" X 116" High
Weight4,800 lBS.

Table Size 26" X 31"
Vertical Travel Of Table 24"
Center Of Spindle To Box Column 16-3/4"
Spindle To Table Top Maximum 47"
Spindle Size 2-1/4"
Drill Capacity 2-1/4"
Spindle Travel 10.25"
Spindle Taper #5 Morse
Spindle Speeds 62 To 1,120 Rpm's
Spindle Feeds .0039 To .0236 IPR.
Main Motor 7.5 Hp. 440 / 220 /3
Approximate Dimensions Length / Width 64" X 68"
Machine Height 116"
Machine Weight 4,800 Lbs.
Elevating Table Yes
Geared Head Yes
T-Slotted Work Table Yes
Power Head Elevating Motor Yes
Coolant Yes
