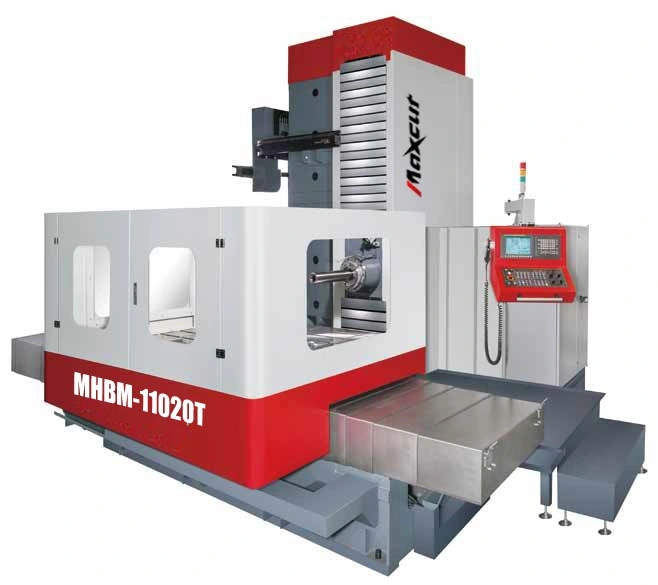

5.1" New Maxcut CNC Table Type Horizontal Boring Mill

63" X 70.87" indexing table as standard
0.001 degree continuous rotary table
Rigid spindle with 2,000 rpm, ISO#50
2 steps speed changer at high speed output.
Spindle quill diameter 5.1"
W axis travel 28"
Spindle vibration supervision function (SVS)
AC servo motor provides extremely high torque, power and axis force
Meehanite cast iron construction provides excellent mechanical stability
Hardened and ground guide ways allows rigid moving
C3 double nuts high class precision ballscrews are fitted
Large working table allows big working piece machining
Optional Linear scales on axes and angle encoder on B axis for absolute positioning accuracy
Floor type ATC with 60 tools as a basic selection; more tool pockets are available
Light fence system for working area
Mechanical counter weight offers headstock stability
Spindle oil chiller
Auto power off
Chip auger for table & chip conveyor
Automatic central lubrication system
Coolant system with check valve
Low voltage circuit control system
Program end & alarm lamp
RS232 interface
Work lamp
MPG box
Machining leveling plate
Operation manual
MAXCUT CNC Boring and Milling Machine UBM-13025 RT CNC11020 With Fagor 8065XP or Fanuc control and 15" LCD full keys

OPTIONAL ACCESSORIES INCLUDED:
60 postion ATC
Servo driver, 0.001°, full CNC rotary table
300PSI Through spindle coolant and guard system for CTS
Power transformer
Optional Renishaw Probe package
Tool setting probe Renishaw OTS
Work piece probe Renishaw RMP-60
Telescopic way cover for sub-supporter guide ways
Warranty Terms
One year Warranty parts and service by Masteel America from date of installation
Startup condition
2 days training Included
Installation and setup included
Foundation drawings included
Delivery 160 days from Date of order
Customer to supply
Foundation requirements
Power to machine,
All lifting equipment to move machine into place and assemble
