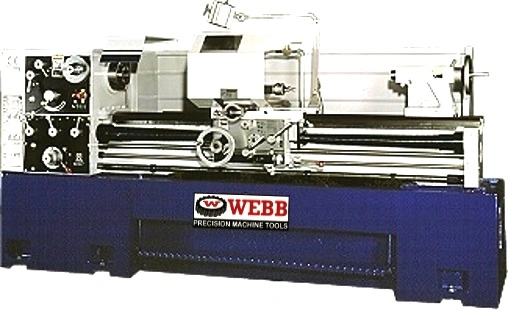

25" X 80" New Webb Engine Lathe Model MA-2580-4

25" X 80" New Webb Engine Lathe Model MA-2580-4

Swing Over Bed Ways.....................................25"
Swing Over Cross Slide..................................17.7"
Swing In Gap............................................31.8"
Center Distance.........................................80"
Spindle Hole............................................4"
Cross Slide Travel......................................12.9"
Compound Rest Travel....................................5.9"
Spindle Speeds..........................................25 To 1,500 Rpm's
Spindle Nose............................................D1-11
Feeds Cross.............................................00018 To 1.254 I.P.R.
Feeds Long..............................................0018 To 1.254 I.P.R.
Threads Inch............................................4 To 56 T.P.I.
Threads Metric..........................................05 To 7 MM
D.P.....................................................8 To 112 T.P.I.
Module..................................................05 To 3.5 T.P.I.
Tail Stock Quill Diameter...............................2.9"
Tail Stock Quill Travel.................................6"
Tail Stock Taper........................................# 4 Morse
Main Motor..............................................10 Hp. 220 / 440/
Machine Dimension.......................................109" L X 4' W X 60" High
Weight..................................................6,000 Lbs.
Rapid Traverse..........................................Yes
Foot Brake..............................................Yes
Coolant Pan.............................................Yes
Thread Dial.............................................Yes
Hardened And Ground Ways................................Yes
Full Length Back Splash Guard...........................Yes

Machine Options: Optional Price are not Included In Base Price.
All prices and specifications are subject to change without notice:
MA 25” Series Upgrade to 15 HP..........................$1,790.00
MA 25” Inverter Head with CSS and PLC for 15 HP.........$8,780.00
MA 25” Series 6” Spindle Bore D2-11 Mount...............$8,600.00
MA 25” Series Double Chuck System Rear Adaptor Plate....$1,890.00
MA 25” Rapid Traverse Motor on Apron....................$1,890.00
MA 25” Series Roller Steady Rest........................$790.00
Follow Rest.............................................$575.00
Micrometer Carriage Stop................................$390.00
Taper Attachment........................................$1,990.00
Installation of taper attachment........................$450.00
Full Length Splash Guard 40” and 60” Centers Machine....$595.00
Full Length Splash Guard 80” and 120” Centers Machine...$795.00
Digital Read Outs: Acu-Rite and Newall
Newall 2 Axis Digital readout System ...................$5,650.00
Chucks:
3-JAW 10” D-1-8 CAM LOCK MOUNT..........................$1,090.00
3-JAW 12” D-1-8 CAM LOCK MOUNT..........................$1,590.00
4-JAW 16” D-1-8 CAM LOCK MOUNT..........................$2,490.00
20” Face Plate D-1-11...................................$860.00
Gator Chuck Ar All With 2 Piece Jaws
Chuck Size 12" 3-Jaw D-1-11 Cam Lock Mount..............$1,890.00
Chuck Size 16" 4-Jaw D-1-11 Cam Lock Mount..............$2,290.0
Chuck Size 16" 3-Jaw D-1-11 Cam Lock Mount Steel Body...$4,350.00
Chuck Size 20" 4-Jaw D-1-11 Cam Lock Mount..............$3,295.00
Tooling:
Aloris Type CA Tool Post with 5 Holder..................$1,750.00
Voltage:
Rewire to 440V..........................................$450.00

Freight Estimate From California........................$2,576.00
All prices and specifications are subject to change without notice:
