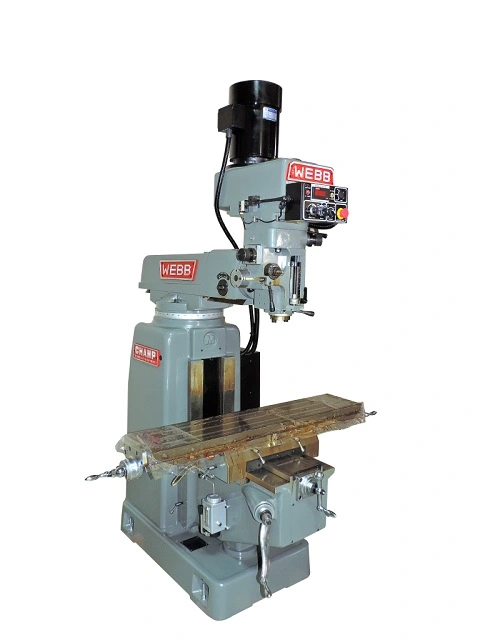

New 10"X54" Webb Knee Type Milling Machine Model Champ 5VK-XL

Table Size.....................................10" X 54"
Knee Width.....................................14"
Table Weight Capacity..........................1,500 Lbs.
T-Slots On Table...............................3
T-Slot Size....................................5/8"
Spindle Taper..................................40 NST
Spindle Speeds Low.............................70 To 500 Rpm's
Spindle Speeds Variable High...................60 To 3,800 Rpm's
Spindle Feeds..................................0.0015, .003 And .0047 I.P.R.
Spindle Quill Travel...........................5"
Spindle Swivel.................................+/- 90 Degrees
Spindle To Table Min. / Max....................1-5/8" To 16-1/2"
Spindle Centerline To Column Min. / Max........4" To 25-5/8"
Saddle Travel In & Out Y axis..................18"
Table Travel Longitudinal X Axis...............38"
Knee Travel Z Axis.............................20.5"
Table Feeds Variable...........................0 To .250 I.P R.
Ram Travel In And Out..........................24"
Over Arm Swivel................................60 Degrees
Main Motor.....................................5 Hp.
Floor Space Right To Left......................102"
Floor Space Front To Back......................84"
Height.........................................84"
Weight.........................................4,200 Lbs.

Manual Milling Machine Options: Prices Subject To Change Without Notice
Stock Number.....Description................................Price

Webb-1036
Maxi Torque Power Draw Bar System for 40 NST Taper..........$990.00
Install Air Draw Bar .......................................$225.00
WEBB-1200
Coolant Pump System.........................................$995.00
WEBB-1205
Coolant/Chip Pan............................................$695.00
Install Coolant Pump System.................................$350.00
Riser:
WEBB-2004....4” Riser Block with Hardware...................$750.00
WEBB-2006 ...6” Riser Block with Hardware...................$795.00
WEBB-2008 ...8” Riser Block with Hardware...................$795.00
WEBB-2010....10” Rise Block with Hardware...................$990.00
Installation................................................$225.00
WEBB-3100....Precision Ground Ball Screws X and Y Axis......$2,100.00
Power Feeds:
Servo Dynamo Power Table Feed:
SERVO Dynamo 150 Table Feed – Longitudinal..................$895.00
SERVO Dynamo 150 Table Feed – Cross.........................$895.00
SERVO Dynamo 150 Table Feed – Knee..........................$990.00
SERVO 150 Inch Pound Table Feed - Longitudinal..............$980.00
SERVO 150 Inch Pound Table Feed – Cross.....................$1,250.00
SERVO 200 Inch Pound Table Feed – Knee “200 Series” ........$1,590.00
WEBB Factory Power Knee Feed Super Duty 4 and 5 Series ONLY $2,190.00
Table Feed Installation ....................................$200.00
Cross Feed Installation ....................................$275.00
Knee Feed Installation......................................$490.00
Tooling:
WEBB-1111
11 Piece R8 Collet Set, 1/8 to ¾ by 16ths Pro Series........$189.00
WEBB-1126
6” Precision Machinist Vise ................................$780.00
6” Precision Vise Economy...................................$670.00
WEBB.1152....52 Piece Work Hold Down Clamp Set..............$169.00
WEBB.1170-8 8 Inch Rotary Table / vert. and Horiz...........$1,095.00
WEBB.1170-10 10Inch Rotary Table / vert. and Horiz..........$1,395.00
WEBB.1170-12 12 Inch Rotary Table / vert. and Horiz.........$1,690.00
D.R.O. System:
Newall 2 Axis Table, Cross Installed .......................$3,950.00
Newall 3 Axis Table, Cross And Knee Installed...............$4,450.00
Mitutoyo Digimatic Quill Scale With Bracket Installed.......$850.00
Voltage:
440 Volts 3 Phase...........................................$750.00
Freight:
Freight Estimate From California ...........................$2,350.00

ALL PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
