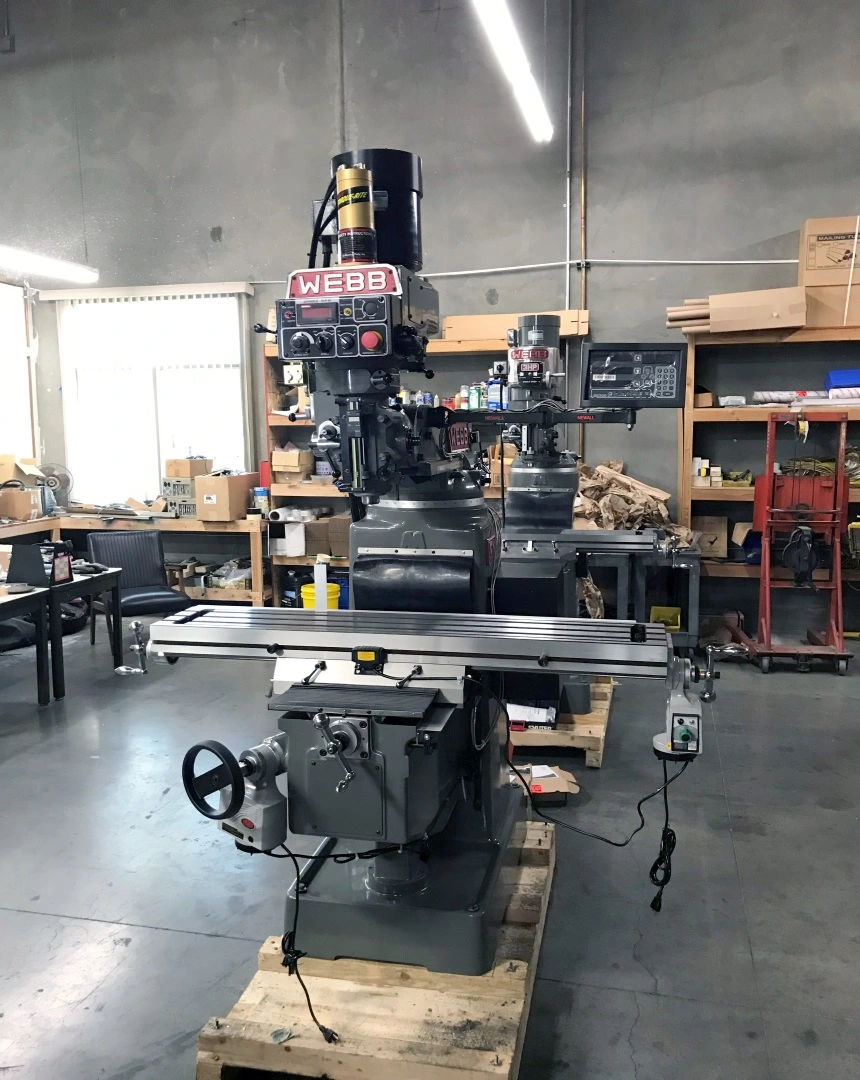

New 10" X 54" Webb Knee Type Milling Machine Model Champ 3EVS-XL

Table Size....................................................10" X 54"
Table Weight Capacity.........................................946 Lbs.
T-Slots On Table..............................................3
T-Slot Size...................................................5/8"
Spindle Taper.................................................R- 8
Spindle Speeds Electronic Variable Speed......................60 To 4,500 Rpm's
Spindle Feeds.................................................0.001 To .003 I.P.R.
Spindle Quill Travel..........................................5"
Spindle Tilt..................................................+/- 45 Degrees
Spindle Swivel................................................+/- 90 Degrees
Spindle To Table Min. / Max...................................1-5/8" To 16-1/2"
Spindle Centerline To Column Min. / Max.......................4" To 25-5/8"
Saddle Travel In & Out........................................15-3/4"
Table Travel Longitudinal.....................................36"
Knee Travel...................................................15"
Table Feeds Variable..........................................0 To .250 I.P R.
Over Arm Travel In And Out....................................21-5/8"
Over Arm Swivel...............................................360 Degrees
Main Motor....................................................3 Hp.
Floor Space Right To Left.....................................102"
Floor Space Front To Back.....................................84"
Height........................................................84"
Weight........................................................3,510 Lbs.

Option Prices Are Not Include in Base Price.
Manual Milling Machine Options: Prices Subject To Change Without Notice
Stock Number.....Description..................................Price
Power Tool Lock:
WEBB-1035
Maxi Torque Power Draw Bar System for R-8 or 30 Taper.........$790.00
Webb-1036
Maxi Torque Power Draw Bar System for 40 Taper................$890.00
Install Air Draw Bar .........................................$175.00
WEBB- 1200
Coolant Pump System...........................................$695.00
WEBB- 1205
Coolant/Chip Pan..............................................$595.00
Install Coolant Pump System...................................$300.00
Riser:
WEBB- 2004....4” Riser Block with Hardware....................$650.00
WEBB- 2006 ...6” Riser Block with Hardware....................$695.00
WEBB- 2010....10” Rise Block with Hardware....................$880.00
Installation..................................................$175.00
WEBB- 3100....Precision Ground Ball screws X and Y Axis.......$1,900.00
Power Feeds:
Servo Dynamo Power Table Feed:
SERVO Dynamo 150 Table Feed – Longitudinal....................$695.00
SERVO Dynamo 150 Table Feed – Cross...........................$790.00
SERVO Dynamo 150 Table Feed – Knee............................$790.00
SERVO 150 Inch Pound Table Feed - Longitudinal................$880.00
SERVO 150 Inch Pound Table Feed – Cross.......................$1,100.00
SERVO 200 Inch Pound Table Feed – Knee “ 200 Series”..........$1,490.00
WEBB Factory Power Knee Feed Super Duty 4 and 5 Series ONLY ..$1,890.00
Table Feed Installation ......................................$150.00
Cross Feed Installation ......................................$225.00
Knee Feed Installation........................................$450.00
Tooling:
WEBB -1111
11 Piece R8 Collet Set, 1/8 to ¾ by 16ths Pro Series..........$189.00
WEBB -1126
6” Precision Machinist Vise ..................................$680.00
6” Precision Vise Economy.....................................$570.00
WEBB- 1152....52 Piece Work Hold Down Clamp Set...............$149.00
WEBB..1170-8..8 Inch Rotary Table / vert. and Horiz...........$895.00
WEBB..1170-8..10Inch Rotary Table / vert. and Horiz...........$1,190.00
WEBB..1170-12.12 Inch Rotary Table / vert. and Horiz..........$1,490.00
D.R.O. System:
Newall 2 Axis Table, Cross Installed .........................$3,450.00
Newall 3 Axis Table, Cross And Knee Installed.................$4,150.00
Mitutoyo Digimatic Quill Scale With Bracket Installed.........$850.00
Voltage:
440 Volts 3 Phase.............................................$750.00
Freight:
Freight Estimate From California .............................$2,350.00

ALL PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
