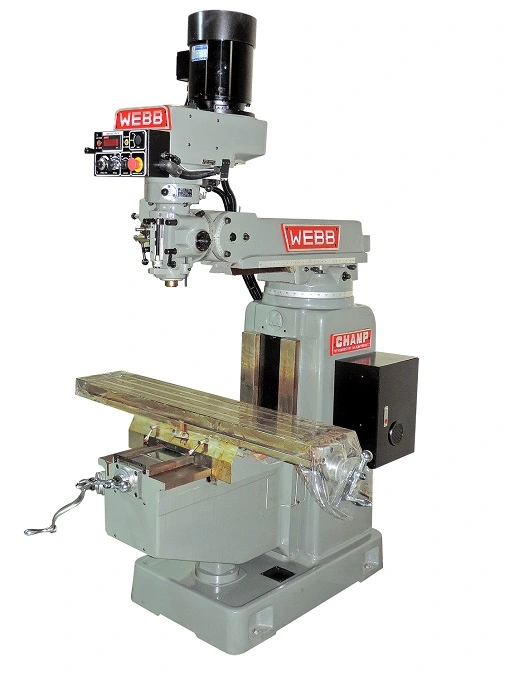

NEW 10" X 54" WEBB Knee Type Milling Machine Model Champ 4EVS-XL-HC INVERTER DRIVE

Table:
Table Size 10" X 54"
Table Weight Capacity 1,800 Lbs.
T-Slots On Table 3
Traverses:
Longitudinal 38"
Cross 18"
Vertical 20.5"
Ram 24"
Swivel Of Head +/- 90 Degrees
Over Arm Swivel 360 Degrees
Knee Way Width
14"Column Way Width 14"
Turret Head With 3 Hp. Electronic Variable Speed:
Low Speed Range, Infinitely Variable 60 To 550 Rpm's
High Speed Range, Infinitely Variable 550 To 4,200 Rpms
Main Spindle Taper R-8
Spindle Traverse 5.5"
Feeds Per Spindle Resolution 0.0015, 1.003 & 0.0047
Main Motor 3 Hp. 440 Volts
Floor Space:
Floor Space Right To Left 96"
Floor Space Front To Back 84"
Machine Height 84"
Weight 3,510 Lbs.

Manual Milling Machine Options: Prices Subject To Change Without Notice
Stock Number.....Description................................Price
Power Tool Lock:
WEBB-1035
Maxi Torque Power Draw Bar System for R-8 or 30 Taper.......$890.00
Webb-1036
Maxi Torque Power Draw Bar System for 40 Taper..............$990.00
Install Air Draw Bar .......................................$175.00
WEBB-1200
Coolant Pump System.........................................$695.00
WEBB-1205
Coolant/Chip Pan............................................$695.00
Install Coolant Pump System.................................$275.00
Riser:
WEBB-2004....4” Riser Block with Hardware...................$690.00
WEBB-2006 ...6” Riser Block with Hardware...................$790.00
WEBB-2010....10” Rise Block with Hardware...................$825.00
Installation................................................$175.00
WEBB-3100....Precision Ground Ball screws X and Y Axis......$1,900.00
Power Feeds:
Servo Dynamo Power Table Feed:
SERVO Dynamo 150 Table Feed – Longitudinal..................$695.00
SERVO Dynamo 150 Table Feed – Cross.........................$790.00
SERVO Dynamo 150 Table Feed – Knee..........................$790.00
SERVO 150 Inch Pound Table Feed - Longitudinal..............$980.00
SERVO 150 Inch Pound Table Feed – Cross.....................$1,100.00
SERVO 200 Inch Pound Table Feed – Knee “ 200 Series”........$1,490.00
WEBB Factory Power Knee Feed Super Duty 4 and 5 Series ONLY $1,890.00
Table Feed Installation ....................................$150.00
Cross Feed Installation ....................................$225.00
Knee Feed Installation......................................$425.00
Tooling:
WEBB -1111
11 Piece R8 Collet Set, 1/8 to ¾ by 16ths Pro Series........$189.00
WEBB-1126
6” Precision Machinist Vise ................................$680.00
6” Precision Vise Economy...................................$570.00
WEBB- 1152....52 Piece Work Hold Down Clamp Set.............$149.00
WEBB..1170-8..8 Inch Rotary Table / vert. and Horiz.........$995.00
WEBB..1170-8..10Inch Rotary Table / vert. and Horiz.........$1,195.00
WEBB..1170-12.12 Inch Rotary Table / vert. and Horiz........$1,490.00
D.R.O. System:
Newall 2 Axis Table, Cross Installed .......................$3,450.00
Newall 3 Axis Table, Cross And Knee Installed...............$4,150.00
Mitutoyo Digimatic Quill Scale With Bracket Installed.......$650.00
Voltage:
440 Volts 3 Phase...........................................$750.00
Freight:
Freight Estimate From California ...........................$2,350.00

ALL PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
