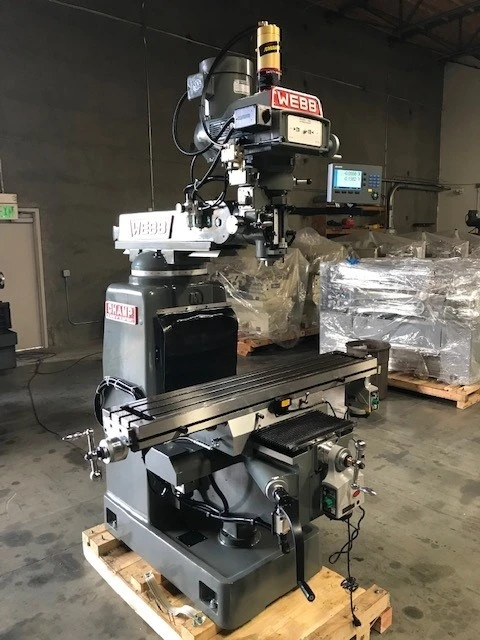

New 10" X 54" Webb Knee Type Milling Machine Model Champ 4VH-XL

Table Size 10" X 54"
Table Weight Capacity 1,300 Lbs.
T-Slots On Table 3
T-Slot Size 5/8"
Spindle Taper R- 8
Spindle Speeds Low 60 To 500 Rpm's
Spindle Speeds Variable High 500 To 4,200 Rpm's
Spindle Feeds .0015, .003 & .0047
Spindle Quill Travel 5"
Spindle Tilt +/- 45 Degrees
Spindle Swivel +/- 90 Degrees
Spindle To Table Min. / Max 1-5/8" To 16-1/2"
Spindle Centerline To Column Min. / Max 4" To 25-5/8"
Saddle Travel In & Out 16"
Table Travel Longitudinal 38"
Knee Travel 18.5"
Knee Width 14"
Table Feeds Variable 0 To .250 I.P R.
Over Arm Travel In And Out 21-5/8"
Over Arm Swivel 360 Degrees
Floor Space Right To Left 101-1/4"
Floor Space Front To Back 79"
Height 84"
Weight 3,510 Lbs.
Main Motor 3 Hp.

Manual Milling Machine Options: Prices Subject To Change Without Notice
Stock Number.....Description................................Price
Power Tool Lock:
WEBB-1035
Maxi Torque Power Draw Bar System for R-8 or 30 Taper.......$890.00
Webb-1036
Maxi Torque Power Draw Bar System for 40 Taper..............$990.00
Install Air Draw Bar .......................................$175.00
WEBB-1200
Coolant Pump System.........................................$695.00
WEBB-1205
Coolant/Chip Pan............................................$695.00
Install Coolant Pump System.................................$275.00
Riser:
WEBB-2004....4” Riser Block with Hardware...................$690.00
WEBB-2006 ...6” Riser Block with Hardware...................$790.00
WEBB-2010....10” Rise Block with Hardware...................$825.00
Installation................................................$175.00
WEBB-3100....Precision Ground Ball screws X and Y Axis......$1,900.00
Power Feeds:
Servo Dynamo Power Table Feed:
SERVO Dynamo 150 Table Feed – Longitudinal..................$695.00
SERVO Dynamo 150 Table Feed – Cross.........................$790.00
SERVO Dynamo 150 Table Feed – Knee..........................$790.00
SERVO 150 Inch Pound Table Feed - Longitudinal..............$980.00
SERVO 150 Inch Pound Table Feed – Cross.....................$1,100.00
SERVO 200 Inch Pound Table Feed – Knee “ 200 Series”........$1,490.00
WEBB Factory Power Knee Feed Super Duty 4 and 5 Series ONLY $1,890.00
Table Feed Installation ....................................$150.00
Cross Feed Installation ....................................$225.00
Knee Feed Installation......................................$425.00
Tooling:
WEBB-1111
11 Piece R8 Collet Set, 1/8 to ¾ by 16ths Pro Series........$189.00
WEBB-1126
6” Precision Machinist Vise ................................$680.00
6” Precision Vise Economy...................................$570.00
WEBB- 1152....52 Piece Work Hold Down Clamp Set.............$149.00
WEBB..1170-8..8 Inch Rotary Table / vert. and Horiz.........$995.00
WEBB..1170-8..10Inch Rotary Table / vert. and Horiz.........$1,195.00
WEBB..1170-12.12 Inch Rotary Table / vert. and Horiz........$1,490.00
D.R.O. System:
Newall 2 Axis Table, Cross Installed .......................$3,450.00
Newall 3 Axis Table, Cross And Knee Installed...............$4,150.00
Mitutoyo Digimatic Quill Scale With Bracket Installed.......$650.00
Voltage:
440 Volts 3 Phase...........................................$750.00
Freight:
Freight Estimate From California ...........................$2,350.00

ALL PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
