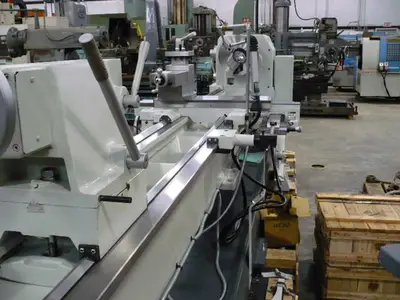

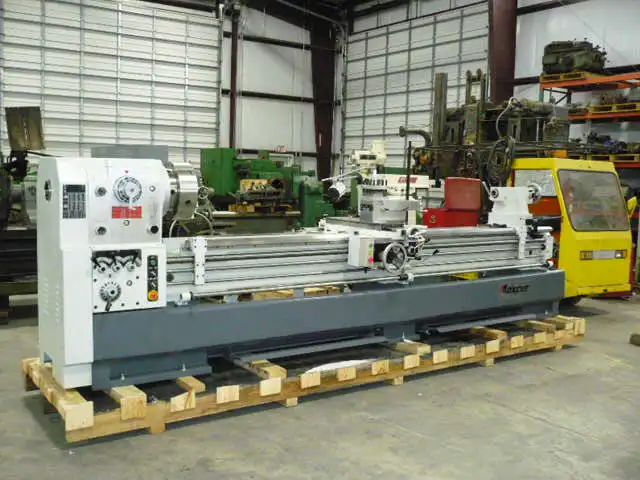

New 25" X 120" Maxcut Engine Lathe

Swing Over Bed Ways...............................25"
Swing Over Cross Slide............................14"
Swing In Gap & Width..............................31-7/8" X 10-5/8"
Width Of Ways.....................................15-3/4"
Max Travel Of Compound Slide......................7-1/2"
Max. Cross Travel Of Lower Slide..................13"
Center Distance...................................120"
Chuck Size........................................16" 4-Jaw
Chuck Size........................................12" 3-Jaw
Spindle Hole......................................4-1/16"
Spindle Nose......................................D-11
Spindle Speeds....................................13 To 1,200 Rpm's
Feeds Cross.......................................0.0015 To .00913
Feeds Long........................................0.035 To.980
Threads Inch......................................2 To 72 TPI
Threads Metric....................................0.2 To 14 MM
Module............................................0.25 TO 10 MM
D.P...............................................3-1/4" To 96 DP
Tail Stock Quill Travel...........................5"
Tail Stock Taper..................................# 5 Morse
Tail Stock Quill Diameter.........................2-15/16"
Main Motor........................................15 Hp.
Machine Dimension.................................48" X 144"
Machine Height....................................60"
Weight............................................8,400 Lbs.
Newall 2 Axis Digital Readout System..............Yes
Rapid Traverse Z-Axis.............................Yes
Full Length Splash Guard..........................Yes
Telescopic Taper Attachment.......................Yes
Steady Rest.......................................Yes
Follow Rest.......................................Yes
Hardened And Ground Ways (RC32) ..................Yes
Thread Dial.......................................Yes
Coolant...........................................Yes
Aloris-Type Tool Post With 5 Holders..............Yes

Optional: Prices subject to change without notice:
Tool Post & Holders:
Aloris-Type (Tool Post and 5 holders) .............$2,740.00 Included
D.R.O.:
Newall 2 Axis D.R.O. Included......................$4,900.00 Included
Install D.R.O System ..............................$450.00 Included
Chucks:
*Gator 20" 4-Jaw With two-piece jaws DM D1-11......$3,950.00
*Gator 16" 3-Jaw With two-piece jaws DM D1-11......$4,250.00
