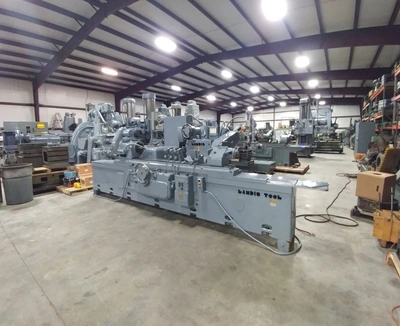

14" X 72" Used Landis Plain Cylindrical Grinder
Grinders, Cylindrical Plain14" X 72" Used Landis Plain Cylindrical Grinder
Swing | 14" |
Centers | 72" |
Plain or Angle Head | Plain |
Grinding Wheel Dia. | 30" |
Wheel Power | 15 hp |
Dimensions | R-L 184" X F-B 96 X Height 66" |
Weight | 22,000 Lbs. |
Swing Over Table 14"
Table Swivel Included Angle 6 Degree
Distance Between Centers 72"
Hydraulic Table Travel 2" To 240" I.P.M.
Diameter Of Grinding Wheel Hole 12"
Diameter Of Grinding Wheel 30"
Work Head Speeds 51 To 140 Rpm's
Work Head #14 Jarno
Width Of Grinding Wheel 4"
Taper On Table 1/4" Per Foot
Main Motor Wheel Head 15 Hp.
Main Motor Work Head Variable 1 Hp.
Hydraulic Motor 2 Hp.
Machine Weight 22,000 Lbs.
Floor Space Left To Right 184"
Floor Space Front To Back 96"
Machine Height 66"
Swiveling Table Yes
Coolant Tank & Motor Yes
Plunge Yes
Tail Stock Manual Crank Yes
Work Rest (3) Yes
Note: Machine has been cleaned, painted and cycled.
Condition Very Good
