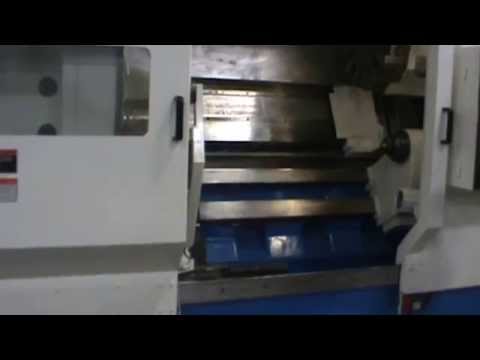

35.8" X 68.9" Mori Seiki CNC Lathe

Control MSC-516 (Fanuc 18T)

Swing Over Ways.....................................35.8"
Swing Over Carriage.................................22.8"
Travel Z Axis.......................................60.2"
Travel X Axis.......................................15.8"
Feeds X/Z...........................................0.001 To .500
Rapid Traverse Z Axis...............................8,000 IPM
Rapid Traverse X Axis...............................5,000 IPM
Weight Between Centers..............................3,000 Lbs.
Center Distance.....................................68.9"
Spindle Nose........................................A1-11
Spindle Bar Capacity................................4.1"
Spindle Speeds......................................6 To 1,135 Rpm's
Chuck Size..........................................21" 4 Jaw Manual
Turret Tools........................................12 Stations
Tail Stock Taper....................................#5 Morse
Tail Stock Quill Diameter...........................5.9"
Tail Stock Body Travel..............................42.5"
Main Motor..........................................50/40 Hp.
Machine Length & Width.............................,R-L 243" X F-B 91"
Machine Height......................................114"
Machine Weight......................................30,000 Lbs.
Machine Chip Pan & Coolant..........................Yes
Chip Conveyor.......................................Yes
Hardened & Ground Ways..............................Yes
Power On............................................59,662
Cutting Time........................................8,350
Run Time............................................1,665
Note: Machine came in with no tool holder blocks.
Price has been discounted.

Condition: Good
