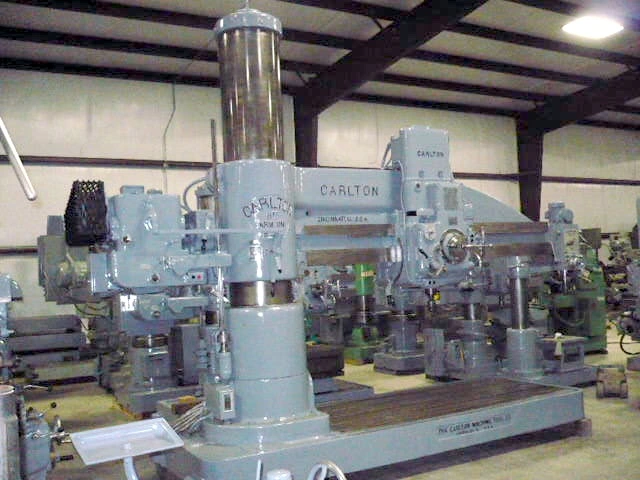

Used Carlton 8' X 19" Radial Arm Drill

Arm Size..............................8'
Column Diameter.......................19"
Maximum Height Under Arm..............78"
Spindle Speeds........................12 To 1,500 Rpm's
Spindle Taper.........................# 6 Morse
Spindle Travel........................24"
Spindle Diameter......................4"
Spindle Feeds.........................004 To .125
Spindle Tap Leads.....................8, 11-1/2, 14,18
Main Motor............................15 Hp.
Floor Space...........................R-L 14' X F-B 50"
Height................................11'
Weight................................30,000 Lbs.
Working T- Slotted Base...............R-L 96" X F-B 50" X 12"
Power Clamp...........................Yes
Power Elevation.......................Yes
Power Rapid Traverse To Head..........Yes
Box Table.............................Yes
Coolant...............................Yes

Note: Machine has been cleaned, painted and cycled.
