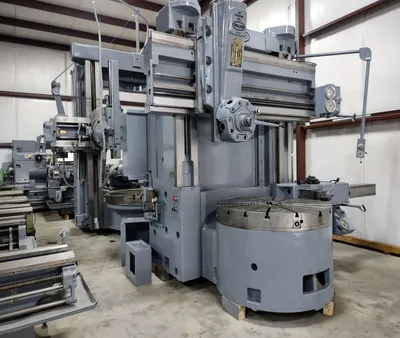

56" Bullard Dyna-Trol Vertical Boring Mill Year 1960

Table Size............................................56" 4-Jaw W/ Top Jaws
Maximum Swing Side Head Above Table...................62"
Maximum Swing Side Head Below Table...................66"
Table Height .........................................37"
Table Speed...........................................7 To 250 Rpm's
Maximum Height Under Turret...........................52"
Rail Adjustment.......................................35"
Side Head Travel Vertical.............................38-3/4"
Side Head Travel In & Out.............................23-3/4"
Turret Head Swivel....................................30 Degrees
Turret Head Travel Left Of Center Line................34-1/2"
Turret Head Travel Right Of Center Line...............31"
Turret Head Travel Vertical...........................26"
Feeds.................................................001 To .250 I.P.M.
Rapids Traverse.......................................120 I.P.M.
Main Motor............................................40 Hp.440 Volts 100 AMPS
Approximate Overall Dimensions........................152" L-R 122"F-B
Overall Height........................................130"
Weight................................................72,000 Lbs.
Chrome Ways On Rail...................................Yes
5 Position Turret W/ Manual Indexing..................Yes
4 Position Side Head W / Manual Indexing..............Yes

Note: Machine is in very good to excellent condition.
I have a couple of oil leaks that will be fixed prior to
shipping.
Machine has been cleaned, painted and cycled.
