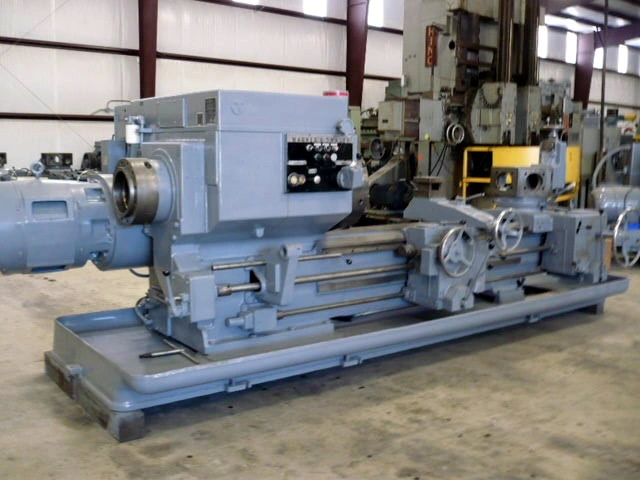

Used 1964 WARNER & SWASEY 4A M-3550 Lot 39 | Lathes, Turret Saddle Type

Swing Over Bed Ways.......................................28-1/4"
Swing Over Cross Slide Carriage...........................22"
Center Distance...........................................62"
Spindle Hole..............................................9-1/4"
Spindle Speeds............................................20 To 526 Rpm's
Spindle Nose..............................................A-15
Chuck Size (New Heavy Duty)...............................24" 4- Jaw New Gator
Feeds Cross...............................................0.005 To 0.090 I.P.R.
Feeds Long................................................0.005 To 0.167 I.P.R.
Main Motor Hp.............................................75 / 37.5
Floor Space Right To Left.................................22'
Floor Space Front To Back.................................7'
Machine Height............................................84"
Weight....................................................24,000 Lbs.
Flange Holders............................................4
Tool Post 4 Way On Front..................................Yes
Rapid Traverse Front And Rear.............................Yes
Fixed Rear Turret.........................................Yes
Full Chip Pan And Coolant.................................Yes
Coolant..................................................Yes
Tool Post 4 Way On Front.................................Yes
Rapid Traverse Front And Rear............................Yes
Fixed Rear Turret........................................Yes
Short Flange Holder......................................3
Long Flange Holder.......................................1
Slide Tool Holder........................................1
Slide Tools One..........................................Yes
Flange Holders Four......................................Yes

Note:
Machine will be cleaned, painted and cycled with everything working
properly. Ways does have some scoring.

Condition:...............................................Good
Note:
Machines Front & Rear Aprons And Rapid Traverse Boxes Have Been
Reconditioned.
Rapid Traverse Drive Box Reconditioned.
New Bearings, In Main Motor.
New Feed And Rapid Shafts. Headstock Cleaned And Flushed.
New Filters And Oil.
New Lockdown Pin And Bushing In Hex And Square Turrets.
New Nut And Screw In Cross Slide.
Gibs Reworked And Refitted.
New 20"4-Jaw Gator Chuck W/ Reconditioning.
Machine May Be Seen Under Power With Proper Notice.
It is recommended that you re-bore the flange tool holders on the rear turret
to ensure they are on center once the machine is level.
Price after reconditioning $119,500.00
Reconditioning will take 16 to 18 weeks after receipt of
Purchase Order.
