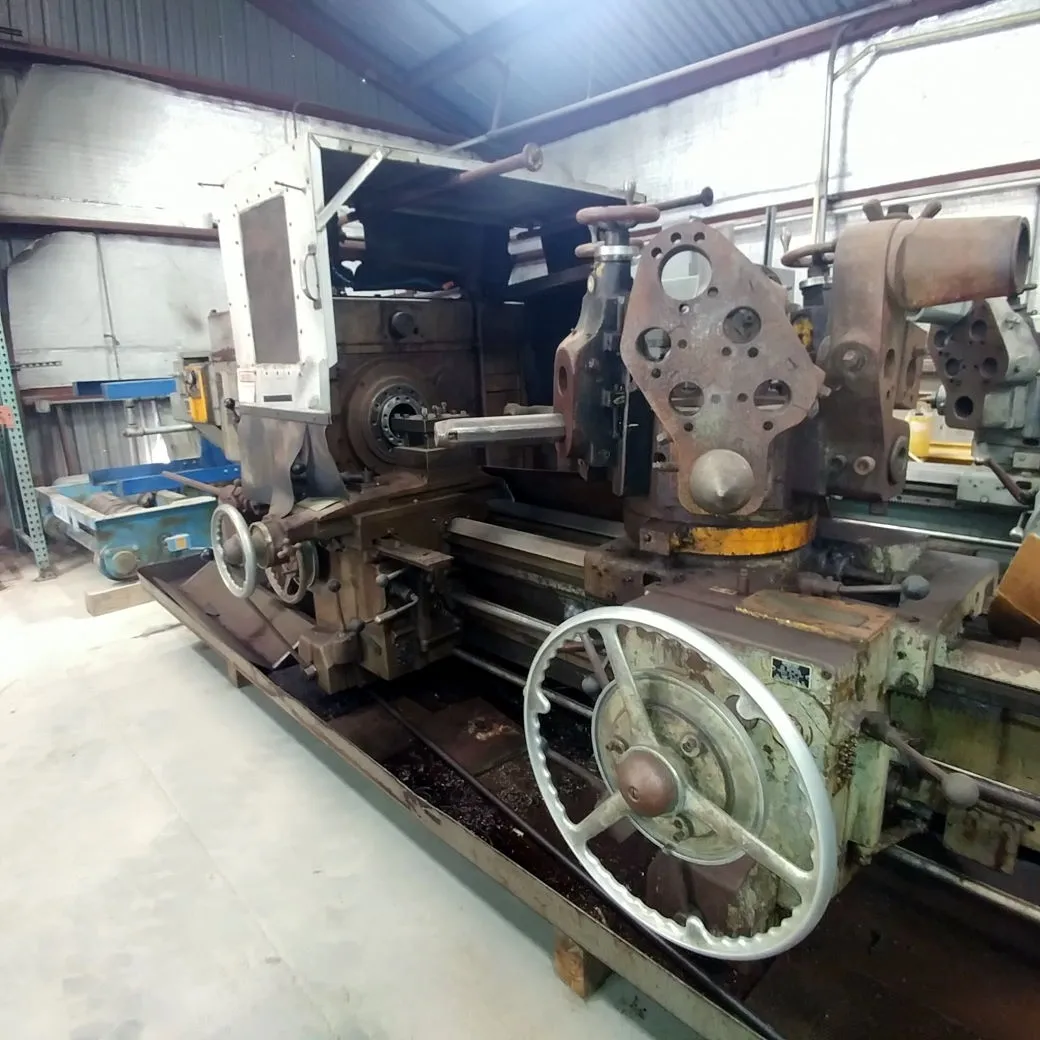

3 A Used Warner & Swasey Square Head Saddle Type Turret Lathe
Have one to sell?
ConditionUsed
1 available
3 A Used Warner & Swasey Square Head Saddle Type Turret Lathe
Swing Over Bed Ways..........................................24"
Swing Over Cross Slide Carriage..............................18"
Center Distance..............................................40"
Spindle Hole.................................................4-3/4"
Spindle Speeds...............................................12 To 851 Rpm's
Spindle Nose.................................................A-11
Chuck Size...................................................20" 4-Jaw New Gator
Feeds Cross..................................................0.0025 To 0.082 I.P.R.
Feeds Long...................................................0.005 To 0.167 I.P.R.
Main Motor...................................................40/20 Hp. 480 Volts
Floor Space..................................................R-L 180" X F-B 84"
Machine Height...............................................64"
Weight.......................................................17,000 Lbs.
Flange Holders...............................................4
Slide Tool Holders...........................................2
Tool Post 4 Way On Front.....................................Yes
Rapid Traverse Front And Rear................................Yes
Fixed Rear Turret............................................Yes
Coolant......................................................Yes
Note: Machine will be cleaned, painted, and cycled.
Note Reconditioning: Machine will have front & rear aprons and rapid traverse box reconditioned. Rapid traverse drive box reconditioned, new bearings in main motor. New feed and rapid shafts. Headstock cleaned and flushed, new filters and oil. New lockdown pin and bushing in hex and square turret. New nut and screw in cross slide. Gibs reworked and refitted. New 20"4-jaw Gator chuck with reconditioning. It is recommended that you re-bore the flange tool holders on the rear turret to ensure they are on center once the machine is level. Machine will be cleaned, painted, and cycled. Machine may be seen under power with proper notice.
Price: $64,500.00 for the above work completed.
If you would like the machine reconditioned, the above work
will be started once the PO and deposit are received.
Estimated time frame eight weeks
