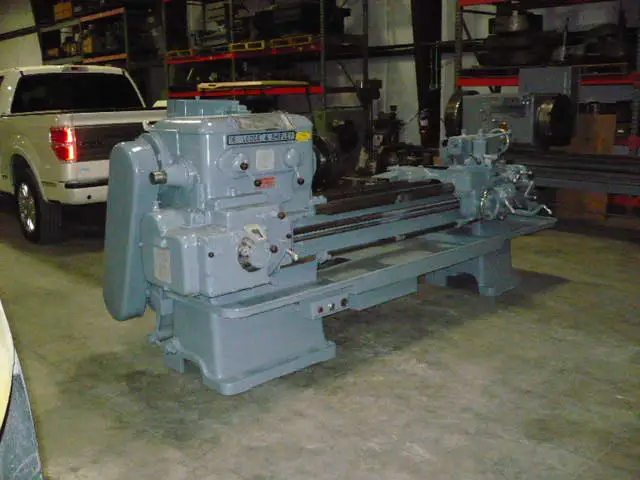

16" X 60" Lodge & Shipley Engine Lathe

Swing Over Bed Ways.................................16"
Swing Over Cross Slide..............................10-5/8"
Center Distance.....................................60"
Spindle Hole........................................1-3/4"
Spindle Speeds......................................14 To 1,160 Rpm's
Spindle Nose........................................L-1
Chuck Size..........................................12" 3-Jaw
Feeds...............................................0.029 To .187 I.P.R.
Threads Inch........................................1 To 64 T.P.I.
Tail Stock Quill Diameter...........................2-5/8"
Tail Stock Quill Travel.............................6-1/2"
Tail Stock Taper....................................# 4 Morse
Main Motor..........................................10 Hp.
Floor Space.........................................R-L 120" X F-B 55"
Height..............................................60"
Weight..............................................6,850 Lbs.
Metric Threading....................................No
Steady Rest.........................................No
Coolant Pan.........................................Yes
Taper Attachment....................................Yes
Thread Dial.........................................Yes
Hardened And Ground Way.............................Yes

Optional:
D.R.O. 2 Axis.......................................$4,950.00 Installed
Aloris Tool Post With 5 Holders.....................$1,375.00
