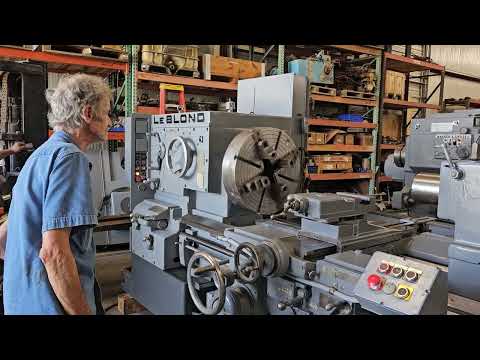

32" X 120" Used LeBlond Heavy Duty Engine Lathe

Swing Over Bed Ways.................................32"
Swing Over Cross Slide..............................20-1/2"
Center Distance.....................................120"
Spindle Hole........................................2-1/8"
Spindle Speeds (36).................................10 To 1,300 Rpm's
Spindle Nose........................................L-2
Chuck Size..........................................24"4-Jaw With 2 Piece Top Jaws
Feeds (60)..........................................0.0045 To .143
Threads Inch (60)...................................1 To 60 TPI
Tail Stock Quill Diameter...........................6"
Tail Stock Quill Travel.............................15"
Tail Stock Taper....................................# 5 Morse
Main Motor..........................................25 Hp.
Floor Space.........................................R-L 20' X F-B 72"
Height..............................................60"
Weight..............................................18,000 Lbs.
Hardened & Ground Replaceable Bed Ways..............Yes
Coolant.............................................Yes
Taper Attachment Minus Clamp And Rod................Yes
Rapid Traverse On Apron.............................Yes
Chip Pans And Coolant...............................Yes
Note:
Machine has been cleaned, painted and cycled.

Option:
Newall 2 Axis D.R.O. System Installed...............$7,650.00
