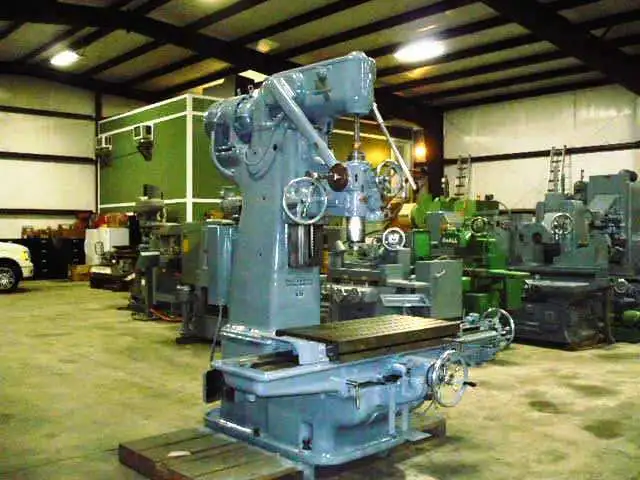

22" X 44" Pratt & Whitney Jig Bore

Table..............................................22" X 44
Cross Table Travel Manual..........................22"
Longitudinal Table Travel Manual...................44"
Max. Table Load....................................1,500 Lbs.
Spindle Quill Diameter.............................4-1/2"
Spindle Support Travel.............................12"
Spindle Quill Travel...............................6"
Spindle Feeds......................................0.0005 To .010 IPR
Spindle Speeds.....................................37 To 1,800 Rpm's
Main Motor.........................................15 Hp.
Floor Space........................................R-L 90" F-B X 120"
Height.............................................106"
Weight.............................................10,000 Lbs.

Note: No Feeds on Table or Saddle.
