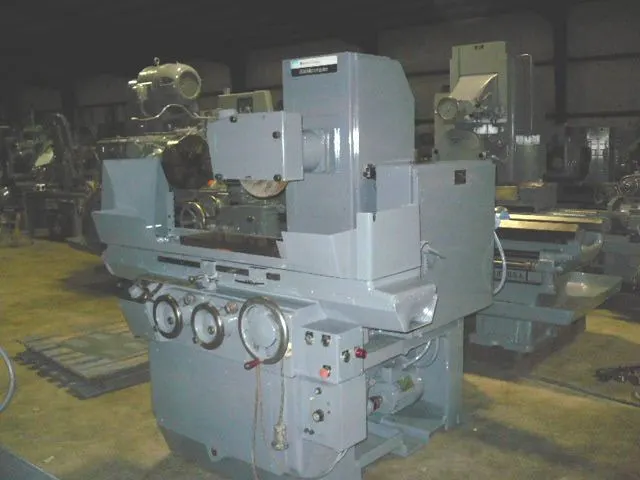

8"X 24" Used Brown & Sharpe Horizontal Surface Grinder
Table Size..................................................8" X 24"
Longitudinal................................................26"
Cross Travel................................................8"
Vertical Working Height.....................................10-1/2"
Standard Size Grinding Wheel................................12" X 1-1/2" X 5" Hole
Spindle Speeds..............................................1,750 Rpm's
Main Motor..................................................5 Hp
Machine Floor Space.........................................R-L 68" X F-B 48"
Height......................................................64"
Machine Weight..............................................3,400 Lbs.
Longitudinal Table Speed Variable...........................Yes
Electromatic Neutrofier For Chuck...........................Yes
Rapid Traverse Up & Down....................................Yes
Incremental Down Feed.......................................No
Coolant With Tank...........................................Yes
Note:
Machine has been cleaned, painted and cycled.
