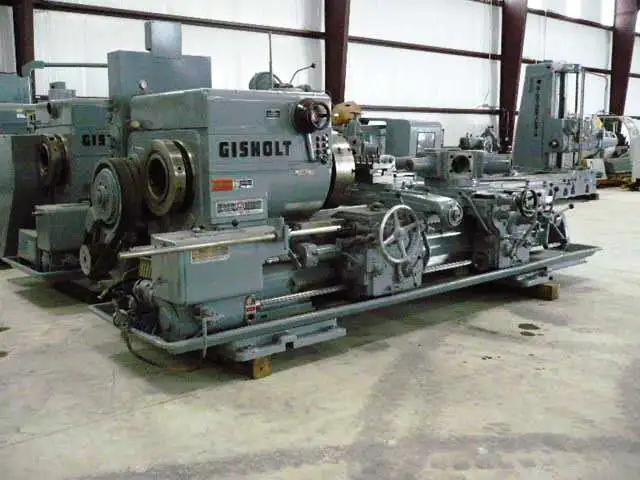

Used 1963 GISHOLT 4L MASTER LINE | Lathes, Turret Saddle Type

Swing Over Bed Ways.............................31-3/8"
Swing Over Cross Slide Carriage.................24-1/2"
Center Distance.................................60"
Spindle Hole....................................9-1/2"
Spindle Speeds..................................12 To 320 Rpm's
Spindle Nose....................................A-1-20
Chuck Size......................................24" 3-Jaw
Feeds Cross.....................................0.0025 To 0.88 I.P.R.
Feeds Long......................................0.005 To 0.176 I.P.R.
Main Motor......................................40 Hp. 230 / 480 Volts
Main Motor......................................50 Hp.
Floor Space.....................................R-L 208" X F-B 84"
Machine Height..................................84"
Weight..........................................25,000 Lbs.
Flange Holders..................................6
Taper Attachment Front & Rear...................Yes
Tool Post 4 Way On Front........................Yes
Cross Sliding Rear Turret.......................Yes
Coolant ........................................Yes
Optional:
New Gator Heavy-Duty Chuck
24" 4-Jaw with two-piece jaws...................$7,650.00
Note:
Machine has been cleaned, painted and cycled.
Oil has been changed in the head stock and aprons
and new belts.
Machine came out of Government surplus.
