Used GISHOLT 4L | Lathes, Turret Saddle Type
Have one to sell?
ConditionUsed
1 available

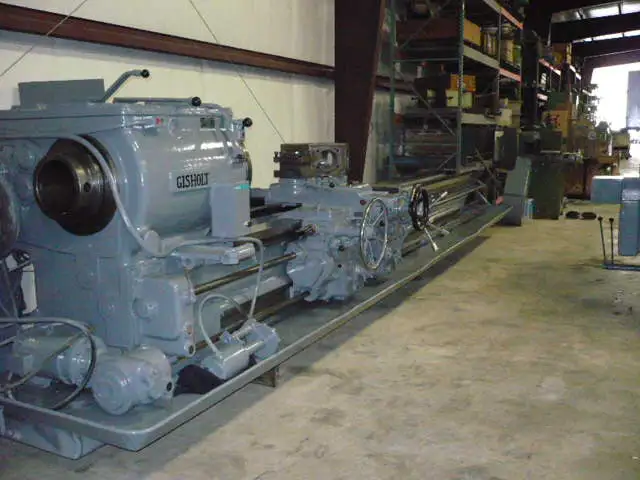

4 L Used Gisholt Saddle Type Turret Lathe
Swing Over Bed Ways 31-3/8"
Swing Over Cross Slide Carriage 24-1/2"
Center Distance 188"
Spindle Hole 9-1/4"
Spindle Speeds 7 To187 Rpm's
Spindle Nose A-1-20
Chuck Size 24" 4-Jaw
Feeds Cross .0025 To .88 I.P.R.
Feeds Long. .005 To 176 I.P.R.
Flange Holders 2
Main Motor 25 Hp.
Floor Space 308" X 72" X 64" H
Weight 25,000 Lbs.
Coolant Yes
Cross Sliding Rear Turret Yes
Tool Post 4 Way On Front Yes
