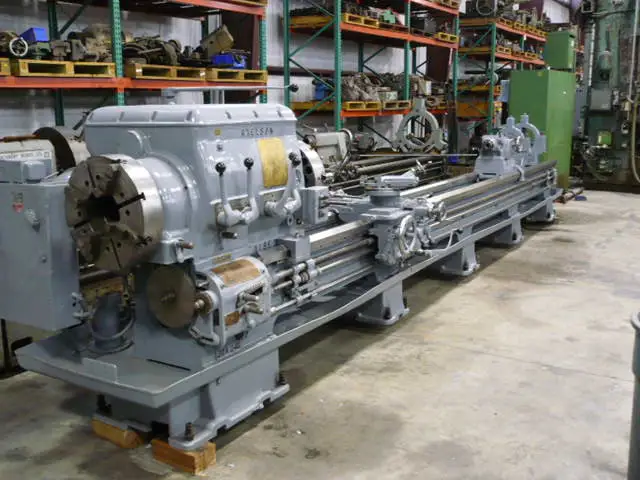

27" X 226" Used Axelson Hollow Spindle Engine Lathe

Swing Over Bed Ways.................................27-5/8"
Swing Over Cross Slide..............................19-1/2"
Center Distance.....................................226"
Spindle Hole........................................8-5/8"
Spindle Speeds......................................6 To 500 Rpm's
Chuck Size W/8-5/8"Hole Front (1) Piece Jaws........20" 4-Jaw
Chuck Size W/8-5/8" Hole Rear (1) Piece Jaws........20" 4-Jaw
Feeds...............................................0.003 To .185 I.P.R.
Threads Inch........................................1-1/2" T 92 TPI
Tail Stock Quill Diameter...........................4-1/2"
Tail Stock Quill Travel.............................10"
Tail Stock Taper....................................# 5 Morse
Steady Rest Roller Type.............................7-1/2"
Steady Rest Roller Type.............................11-1/2"
Main Motor..........................................20 Hp. 440/220/3
Floor Space.........................................R-L 27'5" X F-B 72"
Height..............................................72"
Weight..............................................24,000 Lbs.
Threads Metric......................................No
Chip Pan And Coolant Pump...........................Yes
Taper Attachment....................................Yes
Thread Dial.........................................Yes
Hardened And Ground Ways............................Yes
Factory Raised In The Sand 3".......................Yes

Note:
Machine has been cleaned, painted and cycled.
