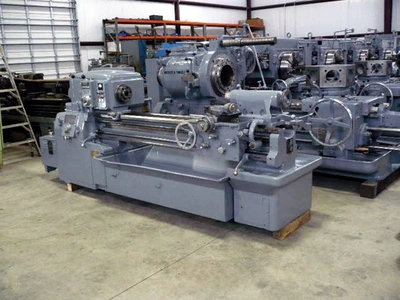

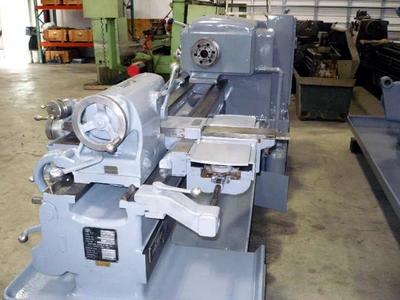

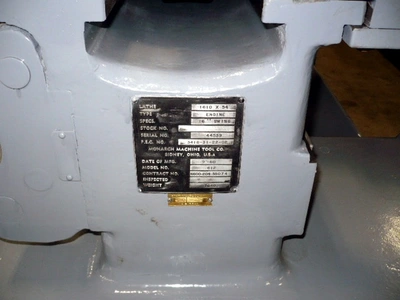

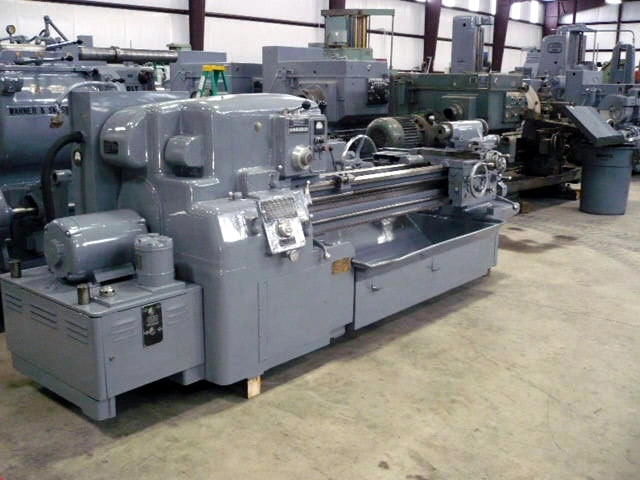

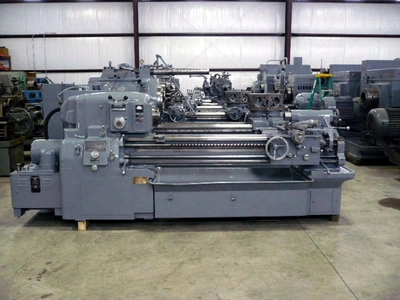

Used 1960 MONARCH 612 | Lathes, Engine

Swing Over Bed Ways..........................16"
Swing Over Cross Slide.......................10"
Center Distance..............................54"
Spindle Hole.................................2"
Spindle Speeds...............................2 To 1,500 Rpm's
Spindle Nose.................................D-1-6
Chuck Size...................................12" 4-Jaw
Feeds........................................0.0013 To .0821
Threads Inch.................................2 To 120 TPI
Threads Metric...............................No
Tail Stock Quill Diameter....................4"
Tail Stock Quill Travel......................6"
Tail Stock Taper.............................# 4 Morse
Main Motor...................................10 Hp 220 / 440
Floor Space..................................R-L 12'X F-B 60"
Height.......................................60"
Weight.......................................9,650 Lbs.
Coolant......................................Yes

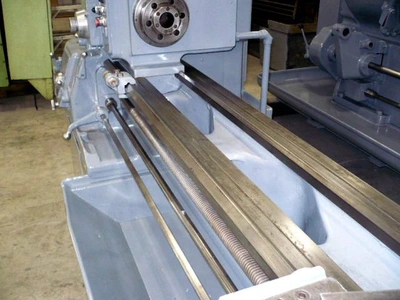

Hardened & Ground Bed Ways...................Yes
Taper Attachment.............................Yes
Full Length Chip Pan.........................Yes

Condition:
Machine has been cleaned, painted and cycled.
