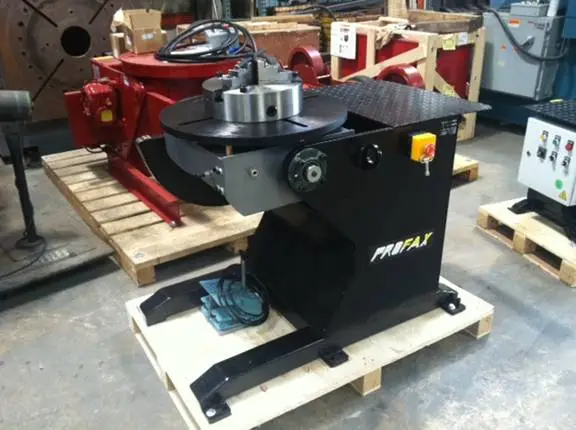

New Profax Welding Positioner Model WP 1000
Engineered for Precision Rotation of Heavy weight Workpieces
This turntable is built to handle up to 1,000 lbs in a horizontal position and 1,750 lbs vertically, making it ideal for heavy-duty applications.
New Profax Welding Positioner Model WP 1000
Table Diameter...................................24-1/2"
Table Thickness..................................1"
Table Height Horizontal..........................33-11/16"
Tavble Height Vertical...........................29"
Vertical Position Weight Max.....................1,000 Lbs.
Horizontal Position Weight Max...................1,750 Lbs.
Note: For optimal performance and safety, ensure the load’s
center of gravity is no more than 6 inches from the center
and 6 inches from the face of the turntable.
Rotation Speeds..................................0.02 To 2 Rpm's
Tilting Angle....................................0 To 135 Degree
Weight...........................................1,200 Lbs.
Voltage......................................... 115
Forward & Reverse Foot Control...................Yes
Optional:
16" 3-Jaw........................................$1,500.00
New Profax Welding Positioner Model WP 1000
Engineered for Precision Rotation of Heavy weight Workpieces
This turntable is built to handle up to 1,000 lbs in a horizontal position and 1,750 lbs vertically, making it ideal for heavy-duty applications.
Imperial
| Table Diameter | 24.5 in |
| Max Weight Capacity | 1,000 lb |
| Weight | 1,200 Lbs. |
New Profax Welding Positioner Model WP 1000
Table Diameter...................................24-1/2"
Table Thickness..................................1"
Table Height Horizontal..........................33-11/16"
Tavble Height Vertical...........................29"
Vertical Position Weight Max.....................1,000 Lbs.
Horizontal Position Weight Max...................1,750 Lbs.
Note: For optimal performance and safety, ensure the load’s
center of gravity is no more than 6 inches from the center
and 6 inches from the face of the turntable.
Rotation Speeds..................................0.02 To 2 Rpm's
Tilting Angle....................................0 To 135 Degree
Weight...........................................1,200 Lbs.
Voltage......................................... 115
Forward & Reverse Foot Control...................Yes
Optional:
16" 3-Jaw........................................$1,500.00
