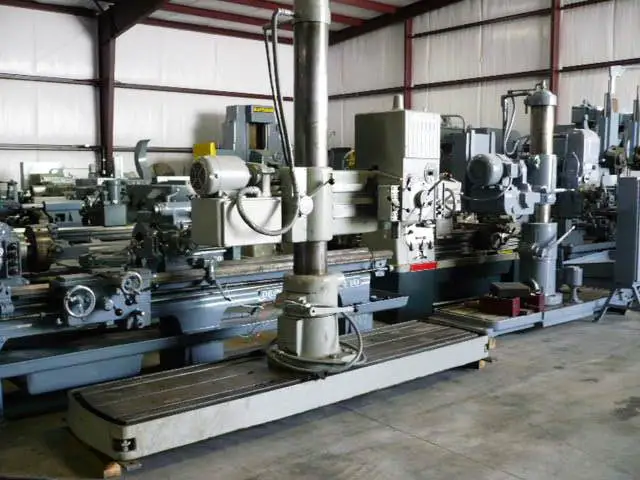

Used Cincinnati Gilbert 4'X9" Double Base Radial Arm Drill

Arm Length..................................4'
Column Diameter.............................9"
Column To Spindle Center Max................48"
Spindle Speeds..............................(12) 40 To 1,600 Rpm's
Spindle Taper...............................# 4 Morse
Spindle Travel..............................10"
Spindle Diameter............................3"
Spindle Feeds...............................(4) .003 To .015
Spindle To Base Max.........................65"
Spindle To Base Min.........................14-1/2"
Head Traverse On Arm........................38-3/4"
Column To Spindle Center Min................9-1/4"
Capacity In Cast Iron.......................1-3/4"
Capacity In Mild Steel......................1-1/2"
Main Motor..................................3 Hp.
Floor Space.................................R-L 86" X F-B 36"
Height......................................101"
Weight......................................5,700 Lbs.
Automatic Spindle Reverse For Tapping.......Yes
Manual Clamp To Head........................Yes
Power Clamp On Arm..........................Yes
Power Elevation.............................Yes
Plain Box Table.............................Yes

Note: MAchine will be cleaned,painted and cycled.
