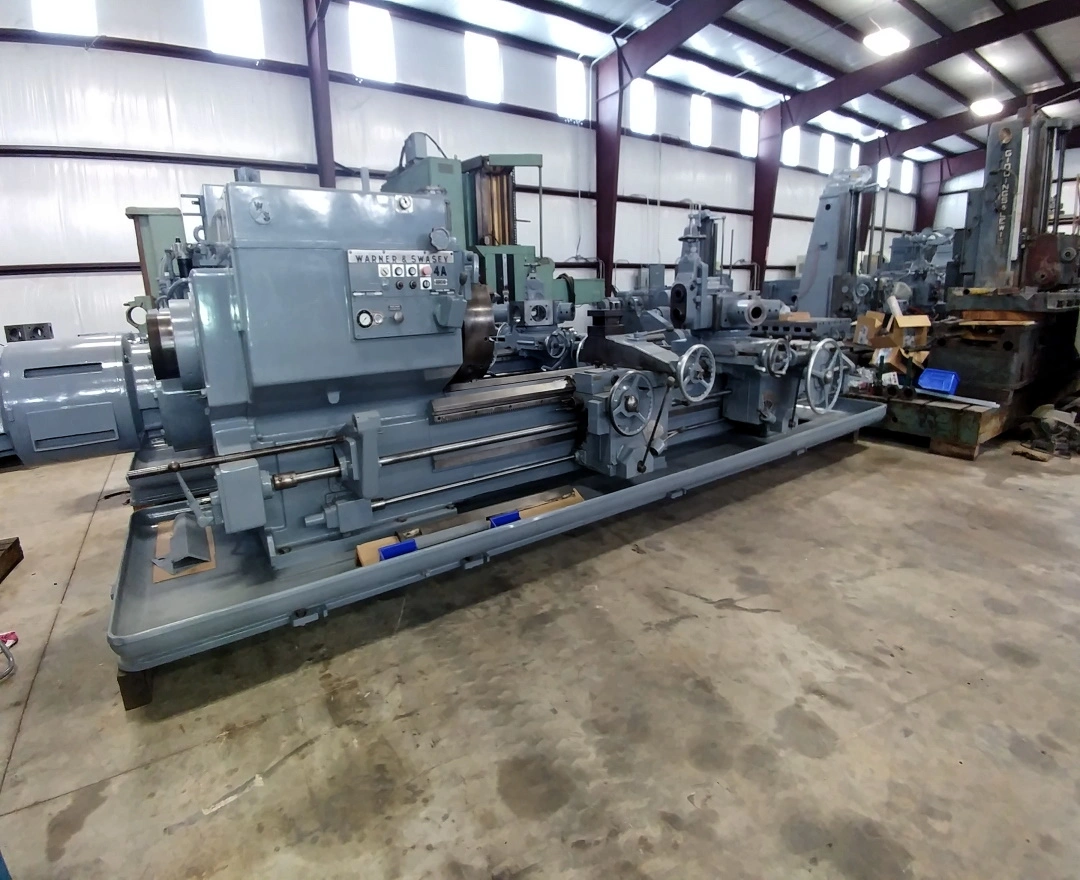

Used 1969 WARNER & SWASEY 4A M-3550 Lot 48 | Lathes, Turret Saddle Type

Swing Over Bed Ways...........................28-1/4"
Swing Over Cross Slide Carriage...............22"
Center Distance...............................144"
Spindle Hole..................................9-1/4"
Spindle Speeds................................20 To 526 Rpm's
Chuck Size Front (Power Wrench)...............24" 3-Jaw
Chuck Size (New Heavy Duty)...................24" 4-Jaw Gator
Spindle Nose..................................A-15
Feeds Cross...................................0.004 To 0.090 I.P.R.
Feeds Long....................................0.005 To 0.167 I.P.R.
Main Motor....................................75/37.5 Hp.
Flange Holders................................4
Weight........................................24,000 Lbs.
Floor Space Right To Left.....................24'
Floor Space Front To Back.....................7'
Machine Height................................80"
Slide Tool Holder.............................1
Flange holders................................4
Power Wrench..................................Yes
Tool Post 4 Way On Front......................Yes
Cross Sliding Rear Turret.....................Yes
Full Chip Pan And Coolant.....................Yes
Coolant.......................................Yes

Note: Machine has been reconditioned.
Note Reconditioning:
Machine's front and rear aprons reconditioned.
Front & rear rapid traverse boxes reconditioned.
Rapid traverse drive box reconditioned.
New bearings in main motor.
New feed and rapid shafts.
Headstock cleaned and flushed, new filters and oil.
New lockdown pin and bushing in hex turret and square turret.
New nut and screw in front cross slide and rear cross slide.
Gibs reworked and refitted.
Machine has been cleaned, painted and cycled.

It is recommended that you rebore the flange tool holders on the rear
turret to ensure they are on center once the machine is level.
