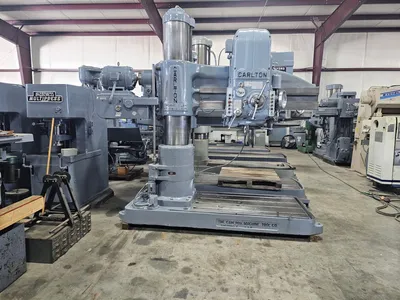

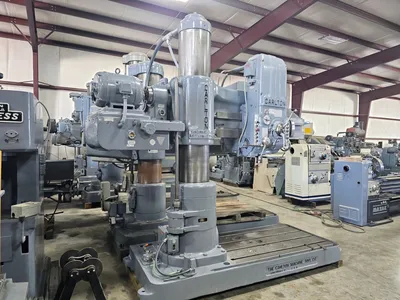

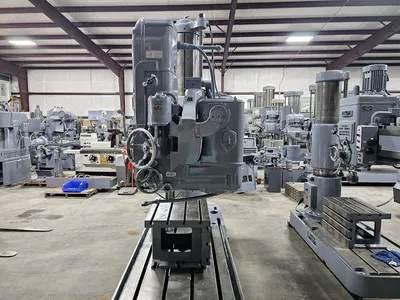

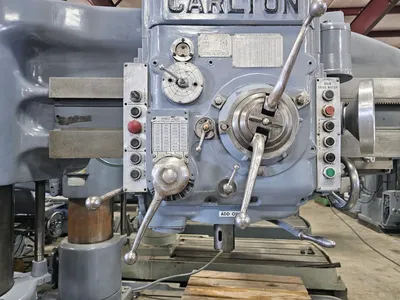

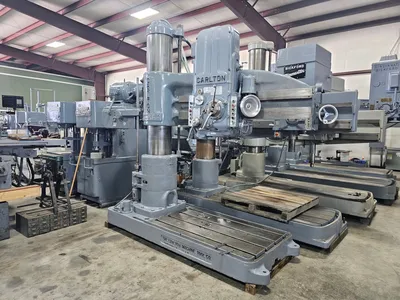

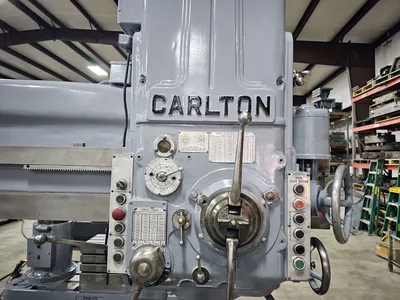

Carlton Model 5'X15" With 3A Head

Arm Size....................................5'
Column Diameter.............................15"
Maximum Height Under Spindle................72"
Minimum Height Under Spindle................10-1/2"
Spindle Speeds..............................15 To 1,500 Rpm's
Spindle Taper...............................# 5
Spindle Travel..............................18"
Spindle Diameter............................3-5/16"
Spindle Feeds...............................004 To .125 I.P.R.
Tap Leads...................................8-1/2,11,14&18
Main Motor.................................15 Hp. 220/440 40/20 Amps.
Dimensions.................................R-L 120" X F-B 60"
Machine Height.............................11'7"
Machine Weight.............................17,500 Lbs.
Power Clamp................................Yes
Power Elevation............................Yes
Power Rapid Traverse To Head...............Yes
Coolant Pump...............................Yes

Note: Machine has been cleaned, painted and cycled.
The box table on machine go's to other machine. The table for the
machine is being cleaned.
All oil has been changed as well. Machine came out of the US Air Force.

Condition Very Good
