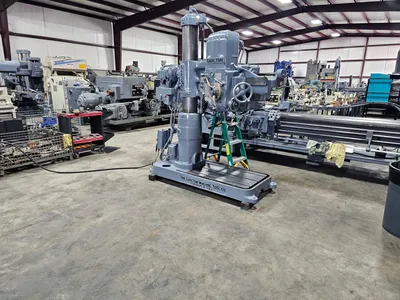

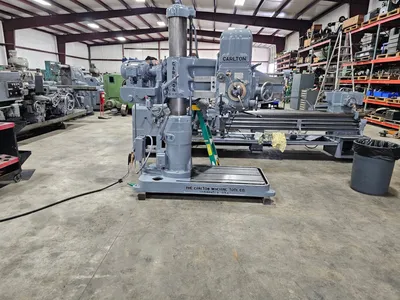

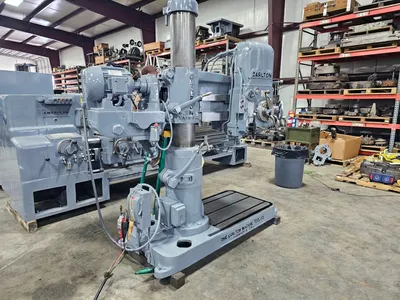

3' X 9" Carlton Radial Drill Model 1A

Arm Size.........................................3'

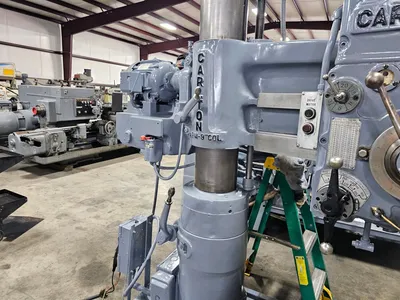

Column Diameter..................................9"
Maximum Height Under Arm.........................48"

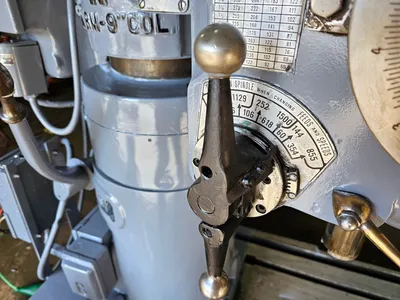

Spindle Speeds...................................60 To 1,500 Rpm's
Spindle Taper....................................# 4 Morse
Spindle Travel...................................12"
Spindle Diameter.................................2-3/4"
Spindle Feeds....................................0.004 To 0.250 I.P.R.
Main Motor.......................................5 Hp. Wired 440/3/60
Floor Space Front To Back........................31"
Floor Space Left To Right........................102"
Height...........................................8'3"
Weight...........................................5,500 Lbs.
Manual Clamp To Head.............................Yes
Manual Clamp On Arm..............................Yes
Power Elevation..................................Yes
Power Rapid Traverse To Head.....................No
Plain Box Table Not Pictured.....................Yes
Column Has Some Light Scoring....................Yes
Coolant Pump.....................................Yes
