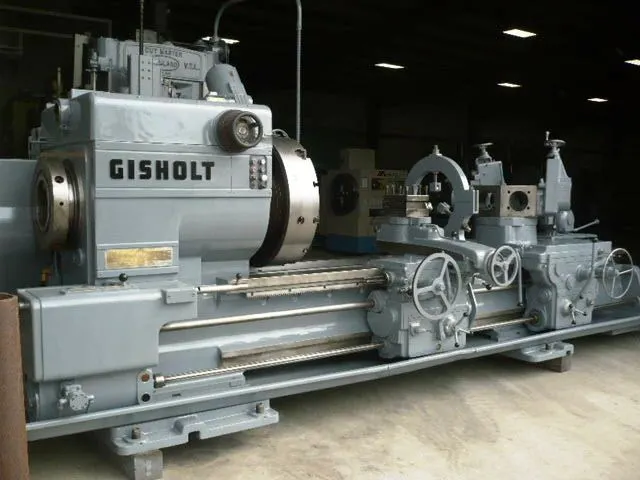

Used 1952 GISHOLT 5L | Lathes, Turret Saddle Type

Swing Over Bed Ways.............................40"
Swing Over Carriage Wing........................33"
Swing Over Cross Slide Carriage.................26-1/2"
Center Distance.................................84"
Spindle Nose....................................A-20
Spindle Hole....................................9-1/4"
Spindle Speeds..................................11 TO 280 Rpm's
Chuck Size......................................32" 3 Jaw
Feeds Cross.....................................0.0015 To 0.044 IPR
Feeds Long......................................0.003 To 0.088 IRR
Main Motor......................................40 Hp. 230 / 480 Volts
Floor Space.....................................R-L 208" XF-B 72"
Height..........................................84"
Weight..........................................35,000 Lbs.
Flange Holders..................................4
Slide Tool Holders..............................2
Steady Rest.....................................10" Capacity
Coolant.........................................Yes
Tool Post 4 Way On Front........................Yes
Rapid Traverse Front And Rear...................Yes
Fixed Rear Turret...............................Yes

Machine has been cleaned, painted and cycled.
