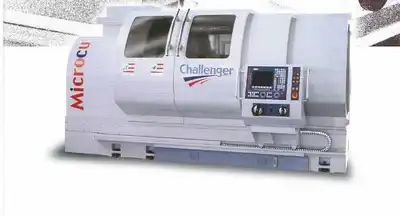

New MICROCUT CHALLENGER BNC-2200X | New Machinery, CNC Lathes Flat Bed

Control Fagor 8060

Swing Over Ways 21.65"
Swing In Gap 31.1"
Swing Over Cross Slide 12.2"
Chuck Size Hydraulic 12" 3-Jaw
Spindle Speeds 80 To 2,400 Rpm's
Spindle Hole 4.1"
Bar Capacity 3.58"
Spindle Nose A1-11
Center Distance 60"
Cross Slide Travel Z Axis 64"
Cross Travel X Axis 11.81"
Rapid Traverse Z Axis .590 IPM
Rapid Traverse X Axis .590 IPM
Cutting Feed Rate .001 To .500 IPM
Tail Stock Quill Taper #5 Morse
Tail Stock Quill Stroke 5.91"
Tail Stock Quill Diameter 3.94
Machine Width 87.6"
Machine Length 126"
Machine Height 80.71"
Weight 9,800 Lbs.
Main Motor Continuous 15 / 20 Hp.
Manual Steady Rest 5.91" To 11.81"
Manual Steady Rest .790" To 7.87"
Turret Tooling For V 8 Stations 1-1/4" X 1-1/4"
Front Turret Standard Vertical 8 Stations
Rear Turret 4E-160 Horizontal 4 Stations
Boring Holders 3
Facing Tool Holder 2
Gib & Spacer Set 8 Sets
Sleeve (12,16,20,32,40 MM) 1 pc. Each
Drill Sleeve ( MT2, MT3, MT4) 1 pc. Each
Chip Conveyor Yes
Coolant System Yes
Hardened & Ground Ways Yes
Hydraulic Tail Stock Quill Yes
