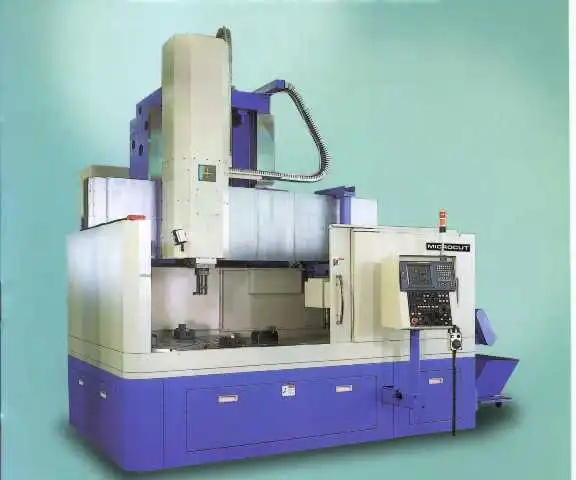

63" New Microcut CNC Vertical Boring Mill
Have one to sell?
ConditionNew
New
63" New Microcut CNC Vertical Boring Mill
Control 18i TB
Maximum Swing 78"
Table Size 63" 4-Jaw
Table Load 22,000 Lbs.
Height Under Rail 70.87"
Recommended Part Height 47.87"
Table Speed 62 To 250 Rpm's
Vertical Traverse Of Cross Rail 55.12"
Travel Z Axis 70.87"
Travel X Axis 39.4"
Rapids Traverse Z Axis 394 I.P.M.
Spindle Torque 12,900 LBF
Cutting Force 5,390 LBF
Feeds .001 To 2000 REV
Ram Spindle Taper BT 50
ATC Positions Bi- Directional 12
Dimensions 155" X 204" X 196"
Height 148.6"
Weight 86,000 Lbs.
Main Motor 50 Hp.
Pendent Yes
Chip Conveyor Yes
Delivery:
Within 300 days after order confirmed Price valid for 4 months till May 31, 2011
Remark: Payment Purchaser must establish the L/C in full amount at the same time of P.O. confirmation.
Performance test
Machine inspection and trial cutting will be done at supplier factory before delivery take place.
Technical document
Supplier will provide the following documents in English.
a) 1 of technical construction file.
b) 1 of instruction and maintenance manual.
c) 1 of electrical system document.
d) 1 of spare parts list.
Machine warranty
a) Free maintenance is provided for the equipment at supplier factory over a period of one year after on board date. However, this offer may be affected by delays in actual delivery and installation time. Therefore. The warranty period will be 13 month's at most after equipment being shipped from our factory.
b) Broken under incorrect operation within the warranty period: USD300/person / day
Transportation expense is at customer cost.
c) After warranty period has elapsed: USD300 / person / day
Hotel expense is at customer cost.
Installation running in and Training
7 days training course with 3 engineers at customer's plant. Cost is as following,
USD300 / per person / per day
Transportation, hotel and meal expense is at customer cost.
