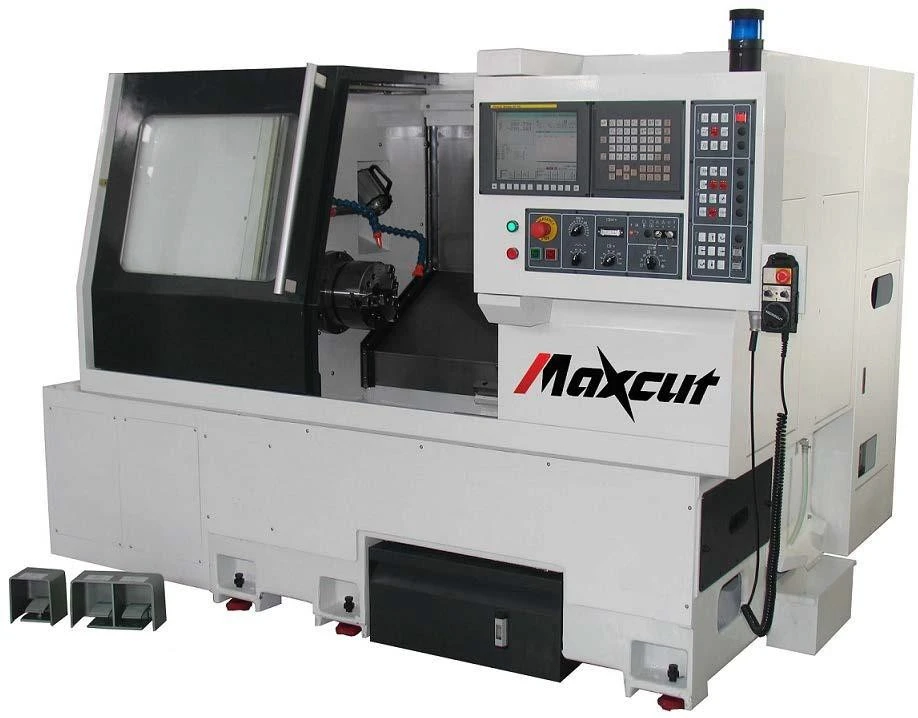

New Max Cut CNC Slant Bed Lathe Model MTC25-1420 20"X20"

Control Fagor 8060 or Fanuc 0iMTF

MACHINE SPECIFICATIONS:
CAPACITY
Swing over bed 508mm (20”)
Swing over cross slide 360mm (14.17”)
Maximum turret diameter with turret 369mm (14.5”)
Maximum turning length with chuck 508mm (20”)
Bar capacity 65mm (2.56”)
TRAVEL
X axis 215mm (8.46”)
Z axis 514mm (20.25”)
SPINDLE
Spindle nose A2-6
Spindle hole diameter 65mm (2.56”)
Maximum spindle speed 4000 rpm
Spindle taper 1/20
Spindle motor 11kW (15 hp.)
Hydraulic chuck diameter 10”
Maximum hydraulic pressure 30kgf/cm2 (450 psi)
TOOL TURRET
Turret type LS-200 hydraulic
Tool stations 12
Boring bar diameter 32mm (1.26”) diameter
Turning tool shank 25mm (1”) square
AXES
X/Z axis rapid feed rate 30m per minute (1,181” per minute)
X/Z axis servo motor 11/6Nm (8.56 ft-lbs.)
ACCURACY
Positioning accuracy +/- 0.01mm (+/- 0.0004”)
Repeatability 0.005mm (0.0002”)
TAILSTOCK
Tailstock quill diameter 65mm (2.56”)
Tailstock travel 425mm (16.73”)
Quill taper MT#4
Quill travel 50mm (1.97”)
DIMENSIONS
3280 x 1820 x 1680mm (130” x 72” x 67”)
Weight 3200kg (7040 lbs.)

VALUE STANDARD EQUIPMENT INCLUDED
FAGOR 8060 POWER CONTROL WITH 10.4” LCD MONITOR
Or FANUC 0iTF PLUS CONTROLLER WITH 10.4” LCD
8” hydraulic 3-jaw chuck with soft jaws
Renishaw manual tool setter
Belt type chip conveyor
Automatic part catcher
High pressure coolant system
Auto lubrication system
M30 program stop light
Fully enclosed splash/chip guard with interlock safety device
Heat exchanger for electrical cabinet
Tool holder package containing:
Four (6) gib & spacer for 1” square shank o.d. cutting tool
One (1) facing tool holder for 1” square shank facing cutting tool
Two (4) boring bar holders
One (1) boring bar holder with coolant through
One (1) each boring bar sleeve ½’, 5/8” and 1” capacity
One (1) boring bar sleeve with coolant through

Optional Equipment:
Bar Feed Pro-65E..................................$POR
BAR FEEDER FEATURES
High Loading Speed, Specially Developed Design
No special requirements or restrictions on material straightness.
Material rotates within machining area and spindle length of lathe.
Lathe spindle speed can be maximized.
Material can be round, hexagonal and shaped.
Material length can be uniform or random.
Operating and maintaining easily.
Small footprint
MODEL V-65E
maximum bar diameter Φ13/64" - Φ2-9/16"
Maximum bar length (not to exceed turning centre spindle
length maximum 48"/1200mm spindle height 36-7/32" - 51-1/8"

Programmable Tailstock............................$POR
Hydraulic 10" Chuck...............................$POR
