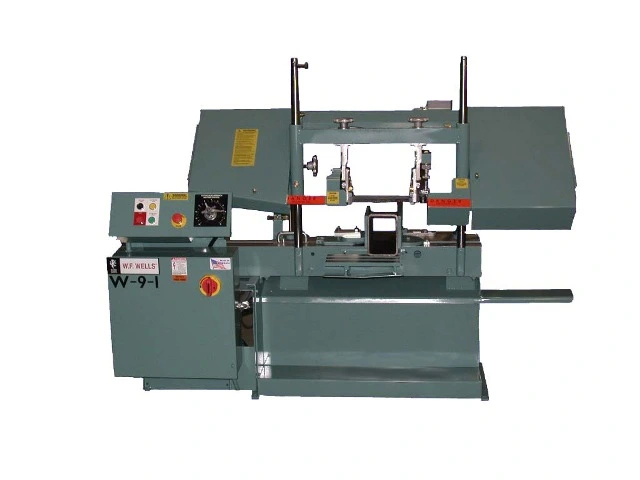

9"X17" W.F. Wells Dual Column Semi-Automatic Horizontal Saw Model W-9-1

Maximum Capacity Flat 17"
Maximum Capacity Round 9"
Maximum Capacity @ 90 Degrees 9" H X 17" W
Work Height 26"
Cycle Time To Lower 16" X 12 Seconds
Saw Weight Capacity 2,000 Lbs.
Blade Wheel Size 14-1/2"
Blade Size 1" X 11'-6" X .035
Sawing Force 30 To 120 Lbs.
Blade Speed 60-425 S.F.P.M.
Saw Frame To Raise 16" In 18 Second
Main Motor 3" Hp.
Motor Hydraulic 1/3 Hp.

Machine Height 63"
Floor Space 43" L X 81" W
Weight 1,000 Lbs.
Discharge Table No
Manual Vise Yes
Manual In Feed Of Material Yes
Coolant 10 Gallon Yes
Power Down Yes
Carbide Guides With Back Up Rollers Yes
Manual Blade Tension Yes

Voltage:.........................Part Number
230-60-1.........................0010303
208-60-3.........................0010305
230-60-3.........................0010307
460-60-3.........................0010309
575-60-3 (2Hp.)..................0010311

Prices and specifications subject to change without notice.
OPTIONAL FACTORY INSTALLED ACCESSORIES:
Description.............................................Order#.......Price
Casters (changes work height to 29-1/2”)................0056011......$1,375.00
Automatic Length Stop Assembly..........................0056701......$475.00
Discharge Table, 20" W x 48" L (with Length Stop Assy)..0056014......$3,050.00
Discharge Table, 20" W x 48" L
(with Length Stock Stop With Castors)...................0056014......$3,550.00
Work Light, Wired In....................................0052011......$375.00
Blade Tension Indicator (Torque Wrench).................0056010......$450.00
Manual Air Vise.........................................0056180......$2,725.00
Manual Air Holddown.....................................0056013......$2,875.00
Manual Air Vise/Holddown Combined.......................0056488......$5,475.00
Blade Break/Stall Switch................................0052375 .....$675.00
Stock Stand, 6" Roller..................................0050245......$500.00
Stock Stand, 12" Roller.................................0050246......$625.00
Electronic Auger Style Chip Conveyor....................0053192......$5,250.00
Free Standing Roller Stock Conveyors, 6" Centers
18" X 5' X 2,500 lbs Cap. Distributed Weight............0050030.......$950.00
18" X 10' X 5,000 lbs Cap. Distributed Weight...........0050029.......$1,555.00
Consult Factory For Additional Accessories
*Prices and specifications subject to change without notice.
MADE IN USA
