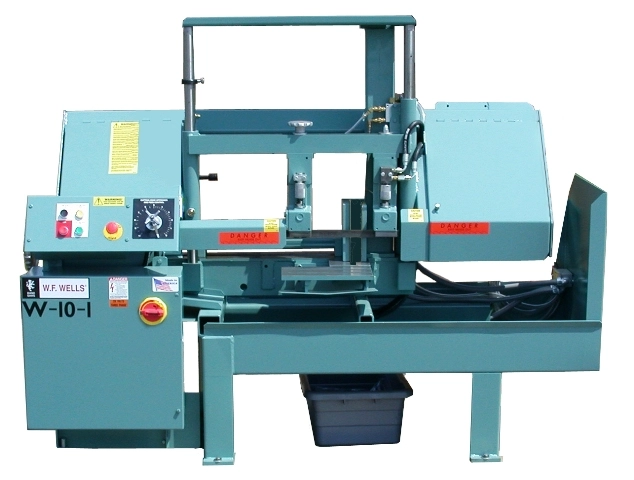

10"X17" W.F. Wells Dual Column Horizontal Saw Model W-10-1

Maximum Capacity Round 10"
Maximum Capacity Flat 17"
Maximum Capacity @ 90 Degrees 10" H X 17"W
Saw Weight Capacity 5,000 Lbs.
Work Height 26"
Blade Size 1" X 11'-11" X .035
Blade Speed 60-425 S.F.P.M.
Sawing Force 30 To 120 Lbs.
Blade Wheel Size 14-1/2"
Machine Height 63"
Floor Space 49" L X 97" W
Height 65"
Weight 1,400 Lbs.
Motor Hydraulic 1/3 Hp.
Main Motor 5 Hp.
Discharge Table No
Manual Vise Yes
Manual In Feed Of Material Yes
Coolant 15 Gallon Yes
Power Down Yes
Carbide Guides With Back Up Rollers Yes
Manual Blade Tension Yes

Voltage:............................................Part Number
208-60-3............................................0010802
230-60-3............................................0010803
460-60-3............................................0010804
575-60-3 (2 HP.)....................................0010805
*Prices and specifications subject to change without notice.
OPTIONAL FACTORY INSTALLED ACCESSORIES
Description.........................................Part Number....Price
Casters.............................................0056051........$1,375.00
Discharge Worktable, 20" W x 48" L with Stock Stop..0056031........$3,050.00
Work Light, Wired In................................0052030........$375.00
Automatic Length Stop Assembly......................0056703........$475.00
Blade Break/Stall Switch............................0056048........$675.00
Manual Air Vise.....................................0056480........$2,775.00
Stock Stand, 6" Wide (Heavy Duty)...................0050245........$500.00
Stock Stand, 12" Wide (Heavy Duty)..................0050246........$625.00
High Speed Drive & Guide 400-3000 SFPM, ¾” Blade....0056700........$8,850.00
Free Standing Roller Stock Conveyors, 6" Centers
18" X 5' X 2,500 lbs. Cap. Distributed Weight.......0050030.........$950.00
18" X 10' X 5,000 lbs. Cap. Distributed Weight......0050029.........$1,550.00
Consult Factory For Additional Accessories
*Prices and specifications subject to change without notice.
MADE IN USA
