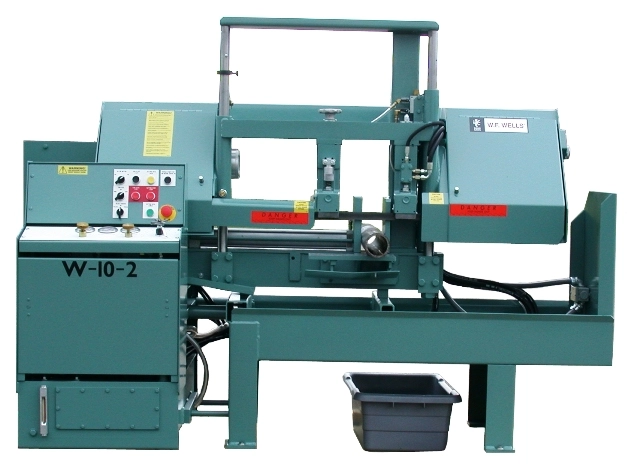

10"X 17" W.F. Wells Dual Column Semi-Automatic Horizontal Saw Model W-10-2
Have one to sell?
ConditionNew
New
10"X 17" W.F. Wells Dual Column Semi-Automatic Horizontal Saw Model W-10-2
Maximum Capacity Flat 17"
Maximum Capacity Round 10"
Maximum Capacity @ 90 Degrees 10" H X 17"W
Work Height 26"
Saw Weight Capacity 5,000 Lbs.
Blade Wheel Size 14-1/2"
Sawing Force 0 - 750 Lbs.
Blade Speed 60 To 500 SFPM
Blade Size 1" X 11'-11" X .035
Main Motor 5 Hp.
Motor Hydraulic 2 Hp.
Floor Space 49"L. X 97" W.
Machine Height 65"
Machine Weight 1,975 Lbs.
Manual Vise Yes
Manual In Feed Of Material Yes
Coolant 15 Gallon Yes
Power Down Yes
Carbide Guides With Back Up Rollers Yes
Hydraulic Blade Tension Yes
Voltage:............................................Part Number
208-60-3............................................0010402
230-60-3............................................0010403
460-60-3............................................0010404
575-60-3 (2 HP.)....................................0010405
*Prices and specifications subject to change without notice.
OPTIONAL FACTORY INSTALLED ACCESSORIES
Description.........................................Part Number....Price
Discharge Worktable, 20" W x 48" L with Stock Stop..0056031........$3,050.00
Work Light, Wired In................................0052030........$375.00
Automatic Length Stop Assembly......................0056703........$475.00
Blade Break/Stall Switch............................0056007........$675.00
Hydraulic Chip Conveyor, Auger Style................0056017........$5,925.00
Hydraulic Holddown, Saw Vise........................0056029........$3,250.00
Stock Stand, 6" Wide (Heavy Duty)...................0050245........$500.00
Stock Stand, 12" Wide (Heavy Duty)..................0050246........$625.00
High Speed Drive & Guide 400-3000 SFPM, ¾” Blade....0056700........$8,850.00
Free Standing Roller Stock Conveyors, 6" Centers
18" X 5' X 2,500 lbs. Cap. Distributed Weight.......0050030.........$950.00
18" X 10' X 5,000 lbs. Cap. Distributed Weight......0050029.........$1,550.00
Consult Factory For Additional Accessories
*Prices and specifications subject to change without notice.
MADE IN USA
STANDARD EQUIPMENT
1" Bi-Metal, High Production Blade
Carbide Guides Blocks
Hydraulic Controlled Vise
Hydraulic Controlled Blade Tension
Semi-Automatic Operation
Built-in Coolant System
Console Controlled Blade Speed
Blade Powered Cleaning Brush
TEFC Motors
Low Voltage and Overload Protection
Hydraulic Oil
Fused Disconnect
Electrical to NFPA-79 Standards
Automatic End-of-Cut Shut Down
Quick and Easy Blade Speed Change
Blade Speed and Work Selector Chart
Feed Pressure Monitor/Regulator
All Safety Guards
Operator Manual and Parts List
OPTIONAL FACTORY INSTALLED ACCESSORIES
Description Order Number Price
Discharge Worktable, 20" W x 48" L with Stock Stop 0056031 $2,750.00
Work Light, Wired In 0052030 $325.00
Automatic Length Stop Assembly 0056703 $425.00
Blade Break/Stall Switch 0056007 $600.00
Hydraulic Chip Conveyor, Auger Style 0056017 $5,350.00
Hydraulic Holddown, Saw Vise 0056029 $2,575.00
Stock Stand, 6" Wide (Heavy Duty) 0050245 $440.00
Stock Stand, 12" Wide (Heavy Duty) 0050246 $540.00
High Speed Drive & Guide 400-3000 SFPM, ¾” Blade 0056700 $7,150.00
Free Standing Roller Stock Conveyors, 6" Centers
18" X 5' X 2,500 lbs. Cap. Distributed Weight 0050030 $760.00
18" X 10' X 5,000 lbs. Cap. Distributed Weight 0050029 $1,325.00
