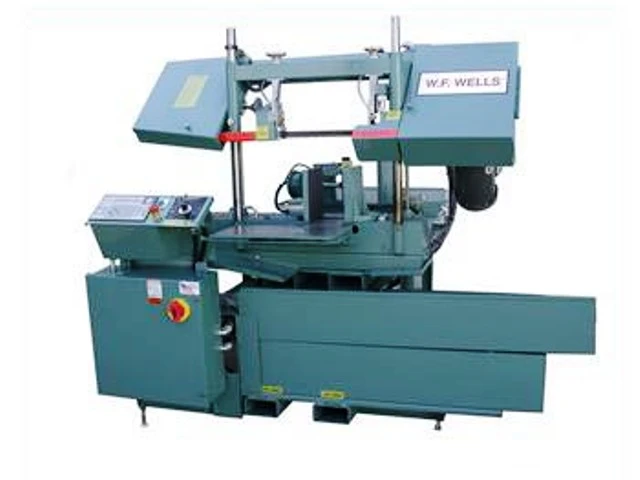

W.F. Wells Model W-914 A CNC 9" X 14" Horizontal Saw

Specifications
Capacity Rectangular at 90 degrees 9" High x 14" Wide.
Round 9" Diameter
Weight Capacity 3,000 lbs.
Blade Speed 70-380 SFPM
Blade Size 1" X .035" X 11' 6"
Blade Guide Roller Guides with Carbide Inserts
Vise Air, 8½" High
Band Wheel Size 14½" Order
Blade Tension Manual
Blade Drive 3 HP, AC Vector Drive
Sawing Force 30-120 lbs.
Coolant Capacity 15 Gallon
Hydraulic Capacity ¾ Gallon
Hydraulic Drive ¾ HP Motor
Work Height 35"
Bar-feed Projection Hydraulic 0-25" CNC Controlled
Projection Accuracy +/-.002"
Shuttle Indexes Unlimited
Remnant End 8"
Tipoff Worktable 19½" Wide x 15½" Deep
Machine Dimensions 96" Length x 82" Width x 68" Heights
Shipping Weight 2,400 lbs.
Electric Wired to NFPA 79 Machine Tool Standards

CNC Programmable Controller with Color Touch Screen
Machine Diagnostics & Programming Prompting
99+ Job Selection
Automatic Kerf Compensation
Blade Break/Stall Switch
Fork-Lift Pockets in Base
Voltage:..........Part Number
230-60-1 2 HP.....0010324
208-60-3 3 HP.....0010320
230-60-3 3 HP.....0010321
460-60-3 3 HP.....0010322
575-60-3 2 HP.....0010323
*Prices and specifications subject to change without notice.
OPTIONAL FACTORY INSTALLED ACCESSORIES:
Description..........................................Order.........Number Price
Air Hold Down, Saw & Bar-feed Vise ..................0053191.......$5,350.00
Blade Tension Indicator (Torque Wrench)..............0056010.......$400.00
Electronic Auger Style Chip Conveyor.................0053192.......$5,250.00
Discharge Worktable (20" Wide x 48" Long)............0011661-W9....$2,900.00
Work Light, Wired in.................................0052011.......$350.00
Mist Coolant.........................................0010868.......$2,900
Free Standing Roller Stock Conveyors, 6" Centers
18" X 5' X 2,500 lbs. Cap Distributed Weight ........0050020.......$875.00
18" X 10' X 5,000 lbs. Cap. Distributed Weight.......0050028.......$1,475.00
Consult Factory For Additional Accessories
*Prices and specifications subject to change without notice.
MADE IN USA
