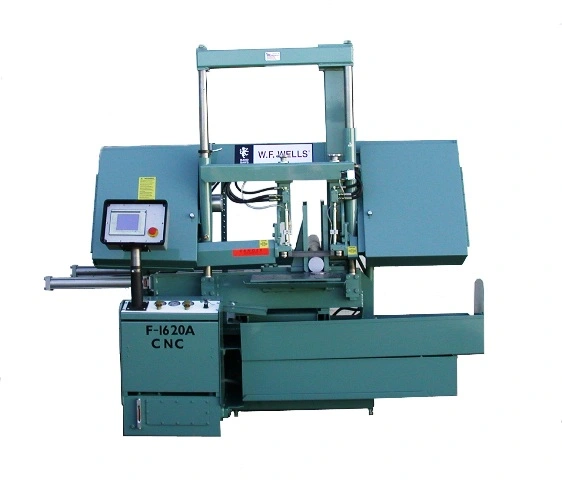

W.F. Wells Model F-1620 A CNC 16"X 20" Horizontal Saw

Maximum Capacity @ 90 Degrees 16" H X 10" W
Maximum Capacity Flat 20"
Maximum Capacity Round 16"
Remnant End 4"
Bar Feed Projection CNC Controlled0 To 25"
Work Height 35"
Saw Weight Capacity 5,000 Lbs.
Sawing Force 0 To 1,000 Lbs.
Blade Speed 60-425 SFPM
Blade Size 15' X 1-1/4"X.035
Machine Height 88"
Floor Space 104" X 101"
Weight 4,000 Lbs.
Main Motor 7-1/2" Hp.
Motor Hydraulic 2 Hp.
Discharge Table No
Hydraulic Tank 20 Gallons Yes
Coolant 15 Gallon Yes
Power Down Yes
Carbide Guides With Back Up Rollers Yes
Manual Blade Tension Yes
Projection Accuracy + /- .001
Dial Length Calibration .001

PROPOSAL INCLUDES THE FOLLOWING STANDARD EQUIPMENT

CNC Programmable Controller with Color Touch Screen
500+ Job Selection
Automatic Kerf Compensation
Blade Break/Stall Switch
Bed and Vise Wear Strips
Electrics: Wired to NFPA 79 Machine Tool Standards
Operator Manual/Parts List
Operator & Maintenance Training

Prices and specifications subject to change without notice.
Optional:
Voltage..............Order Number
208-60-3.............0011650
230-60-3.............0011651
460-60-3.............0011652
575-60-3 (5 HP)......0011653
Description:.....................................Order Number..Price
Hydraulic Hold down, Saw & Bar feed Vise.........0011698.......$5,350.00
Hydraulic Auger Style Chip Conveyor..............0056716.......$5,200.00
Discharge Worktable (20" Wide x 48" Long)........0011683.......$2,900.00
Work Light, Wired In 0011662 $345.00
High Speed Drive & Guides (1" Blade)
400-3000 SFPM....................................0051037........$7,550.00
Free Standing Roller Stock Conveyors, 6" Centers
21" X 5' X 5,000 Lbs.Cap. Distributed Weight.....0050252........$1,475.00
21" X 10' X 10,000 Lbs. Cap. Distributed Weight..0050251........$2,675.00

Consult Factory For Accessories
Prices and specifications subject to change without notice.
