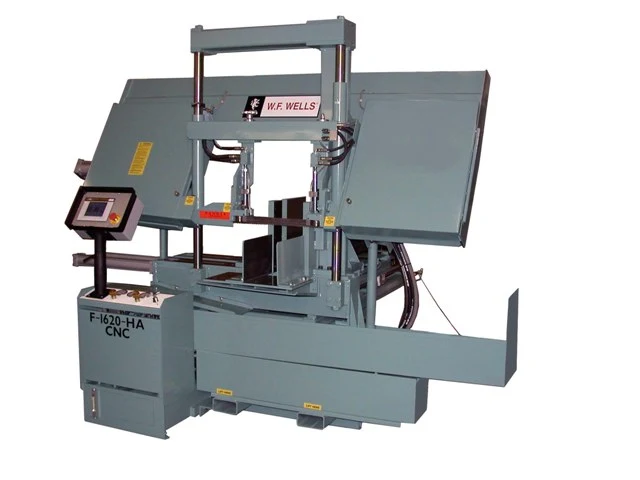

16"X 20" W.F. Wells Dual Column Fully Automatic Horizontal Saw Model F-1620-HA-CNC

Specifications
Capacity:
Rectangular at 90@....................................17" High X 20" Wide,
Round.................................................17" Diameter
Weight Capacity.......................................5,000 lbs.
Blade Speed...........................................60-500 SFPM
Blade Size............................................1¼" X .050" X 16'8"
Blade Guide Roller Guides with........................Carbide Inserts
Vise Hydraulic........................................15" High
Band Wheel Size.......................................22"
Blade Tension Hydraulic...............................Yes
Voltage Number
Blade Drive Variable Speed, AC Vector.................10 Hp.
Sawing Force..........................................0-750 lbs.
Coolant Capacity......................................15 Gallons
Hydraulic Capacity....................................20 Gallon
Hydraulic Drive.......................................2 HP Motor
Work Height...........................................35"
Bar Feed Projection Hydraulic.........................0-25" CNC Controlled
Shuttle Indexes.......................................Unlimited
Projection Accuracy...................................+/-.002"
Remnant End...........................................4"
Tipoff Worktable......................................19½" Wide X 15½" Deep
Machine Dimensions....................................R-L 104"X F-B 101"
Height................................................88"
Shipping Weight.......................................4,500 lbs.
Standard Equipment:
CNC Programmable Controller with Color Touch Screen
On-Screen Help Menu
Fully Automatic Barfeed
500+ Job Selection
Automatic Kerf Compensation
Part Length up to 99999”
Automatic End-of-Cut Shutdown
Digital Blade Speed Indicator
Built-In Coolant System
Variable Vise Pressure
Hydraulic Blade Tension
Bed and Vise Wear Plates
Built-In Fork Lift Pockets
AC Vector Drive
Blade Break/Stall Switch
Electronic Door Interlocks
Machine Diagnostics
Built-In Fork Lift Pockets
Electrics Wired to NFPA 79 Machine Tool Standards

Optional Equipment Not Included In The Price:

Prices and specifications subject to change without notice.
Voltage:......Part Number
208-60-3......0011654
230-60-3......0011655
460-60-3......0011656
575-60-3......0011657
Description..........................................Order Number..Price
Hydraulic Hold down, Saw & Bar feed Vise.............0011660.......$5,650.00
Hydraulic Auger Style Chip Conveyor..................0056716.......$5,475.00
Discharge Worktable (20" Wide x 48" Long)............0053202.......$3,050.00
Work Light, Wired In.................................0011662.......$375.00
Extra Coolant Nozzle with Magnetic Base..............0011681.......$375.00
Mist Coolant.........................................0010774.......$3,050.00
High Speed Drive & Guides (1¼" Blade) 400-3000 SFPM..0050280.......$7,950.00
Free Standing Roller Stock Conveyors, 6" Centers
21" X 5' X 5,000 Lbs.Cap. Distributed Weight.........0050252.......$1,850.00
21" X 10' X 10,000 Lbs. Cap. Distributed Weight......0050251.......$2,875.00

Consult Factory For Additional Accessories
*Prices and specifications subject to change without notice
