New WELLS 1318 | New Machinery Saws, Horizontal Saw
Have one to sell?
ConditionNew
1 available
New

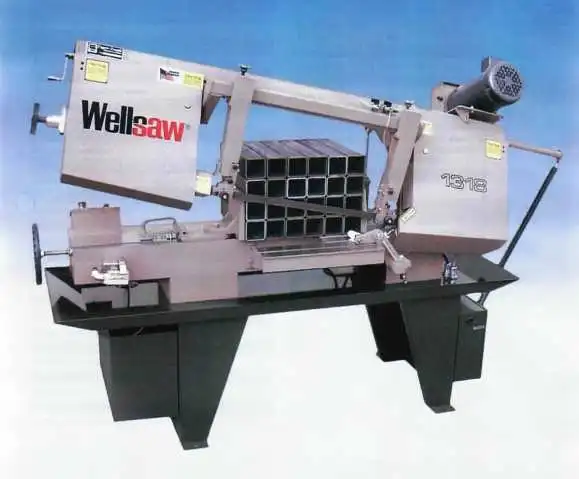

New Wellsaw Model 1318, 13” x 18” Capacity, 1” blade.
Features
Pushbutton control of sawing down feed
Fully adjustable counterbalance spring to control weight of saw frame
Variable Hydraulic Feed Rate Control
Spring loaded Carbide Guides with Rollers
Combination Blade Drive:
Reduction Gearbox and
Perimeter Ring & Pinion
Baldor® Motor
3 HP Motor 3 Phase TEFC
2 HP Single Phase ODP
Infinitely Variable Blade Speeds
Rite-Tension® Blade Tensioning Device
Wet Cutting System
Powered Blade Brush
110 Volts at Controls
Overload and Under voltage Protection
Precision Ground Bed and Vise Jaws
Quick Acting Vise
Adjustable Stock Stop
Auto Shut-Off at End of Cut
OSHA Blade Guarding
Tiger-Tooth® Bi-Metal Blade
Coolant for Initial Start-Up
Maximum Capacity Round........................13"
Rectangular...................................13" X 18"
Maximum Capacity Flat.........................18"
Work Height...................................29"
Blade Wheel Size..............................15"
Blade Speed...................................70 To 375 SFPM
Blade Size....................................1" X 12'6"X.035
Main Motor....................................3 Hp
Machine Height................................40"
Floor Space...................................R-L 84" X F-B 40"
Weight........................................955 Lbs.
Feed Controls Variable Hyd. Counter Balance...Yes
Discharge Table...............................No
Coolant 8 Gallon Tank.........................Yes
Carbide Guides With Rollers...................Yes
Voltage and Phase (motor type)................Part Number
115/60/1 (2HP ODP)............................DL 1318-717
230/60/1 (2HP ODP)............................DL 1318-716
208/60/1 (2HP ODP)............................DL 1318-777
208/60/3 (3HP TEFC)...........................DL 1318-745
230/60/3 (3HP TEFC)...........................DL 1318-746
460/60/3 (3HP TEFC)...........................DL 1318-747
Optional Features for consideration: Price Subject To Change:
Description.................................Part Number........Price
Worklight w/ transformer.......................................$196.00
Blade Break / Stall Switch.....................................$747.00
Flush Hose Kit (w/ hi-output pump).............................$298.00
VFD Variable Blade Speed
(variable frequency control)...................................$2,113.00
Powered Vise Clamping (pneumatic)..............................$1,716.00
Overhead Bundle Clamp
(pneumatic/ used with infeed conveyor).........................$1,858.00
Laser Line Pointe..............................................$794.00
Micro Lubricant System (MQL)...................................$906.00
Oil for Micro Lubricant System – 1 gallon......................$71.00
Tiger Tooth Bi-Metal Blades. Set of six (6)....................$508.00
Sawing Coolant/ Semi-synthetic/ water soluble
1 gallon jug (makes 10 -15 Gals.)100318-027....................$36.73
5 gallon pail (makes 50 to 80 Gals.) 100318-026................$169.57
Spare Parts Kit $656.00
Material Handling Options
Mid-Duty Stock Stand, single 18" wide roller, 250#
capacity 098047-001............................................$204.00
Heavy-Duty Stock Stand:
6" wide roller, 1000# capacity M-325...........................$553.00
(Use part number M-325H if saw will have casters or vibration mounts)
12" wide roller, 1000# capacityM-326...........................$573.00
(Use part number M-326H if saw will have casters or vibration mounts)
20” x 48” Discharge Table......................................$644.00
Gravity Roller Conveyors,
freestanding/ 2” rollers on 6” centers
5 ft. x 18” w/ 2 legs / 3,300 lb rolling capacity 098050-006...$679.00
10 ft. w/ 3 legs/ 6,600 lb rolling capacity 098050-007.........$1,132.00
Mounting Options
Casters, set of four (2 locking) 100113-003....................$186.00
Leveling / Vibration Mounts 0988041-004........................$91.00 Each
Disconnect Options
Fused Disconnect Lever Type / NEMA 1 enclosure.................$790.00
Fused Disconnect Rotary Type / NEMA 12 enclosure...............$846.00
Notes of Freight Quotes. If this quote includes freight charges please consider the following:
Unless specified in the quote,
Freight is quoted only for the item (s) at the time of the request.
Should the customer add options to the order the freight amount will increase.
This quote is valid for 10 days.
Freight is quoted only for the item(s) at the time of the request. If your customer changes the order or adds options to the order this quote is no longer valid.
This freight quote is based upon shipment to a BUSINESS location in the ZIP code you provided. The carrier assumes that the business has a loading dock and fork truck to unload the package.
There will be additional charges if the carrier determines that the ship-to location is Non-Commercial, also referred to as “residential” or “farm”.
There will also be additional fees for:
No dock
Lift gate services
Advance-notice phone calls
Delivery to schools, training centers, church or government offices
Delivery to location needing an appointment and/or escort such as: military facility, secure commercial facility (i.e. large mill or plant)
These policies are controlled by the carrier not by Wellsaw.
OSHA STATEMENT
Wellsaw bandsaw machines meet the OSHA safety standards that are in effect as of the time of this writing. Compliance with OSHA requirements is the legal responsibility of the user. All Wellsaw bandsaws now include as standard equipment, blade guards, low voltage protected switches with automatic cut-off at the completion of a cut, enclosed belt and pulley guards and grounded electrical features.
