New MASTEEL CNC MHBM11020RS | New Machinery, CNC Boring Mill Table Type
Have one to sell?
ConditionNew
1 available
New

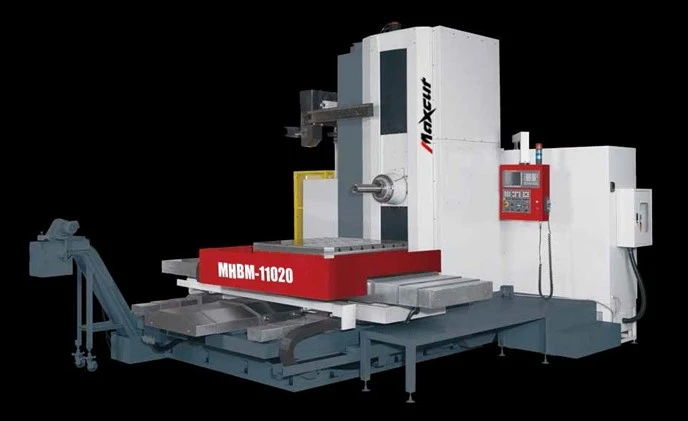

4.33" New Maxcut / Uchine CNC Table Type Horizontal Boring Mill
Control Fagor
Spindle Size 4.33"
Front Bearing Diameter 5.9"
Spindle Head Travel Up & Down Y Axis 72"
Spindle Travel W Axis 20"
Spindle Speeds 35 To 3,000 Rpm's
Spindle Taper Cat #50
Coolant Thru Spindle 300 PSI Yes
Rotary Table Size 49.21" X 59"
Saddle Travel In & Out Z Axis 56"
Table Travel Cross X Axis 80"
Table Load 13,200 Lbs.
Table Load With B Axis Cutting Feed Function 11,000 Lbs.
B Axis Feed / Rapid Traverse Rate 1 Deg. To 360 Deg.
Automatic Tool Changer 60 ATC
Max. Tool Weight 55 Lbs.
Max. Tool Diameter 4.92" / 9.84"
W Axis Fanuc / Fagor 4 / 2.2 Hp.
B Axis Fanuc / Fagor 5.4 / 7.7 Hp.
Z Axis Motor Fanuc / Fagor 5.4 / 9.7 Hp.
X Axis Motor Fanuc / Fagor 5.4 / 9.7 Hp.
Y Axis Motor Fanuc / Fa3,000gor 8 / 11.6 Hp.
Main Motor 20 / 25 Hp.
Height 146"
Max Tool Length 11.8"
Dimensions 186" X 297"
Height 146"
Weight 49,700 Lbs.
Auto Power Off Yes
Spindle Oil Chiller Yes
Table Guards Yes
Spindle Vibration Monitoring Yes
Chip Auger For Table & Chip Conveyor Yes
Coolant Yes
Hydraulic System Yes
Auto Lubrication System Yes
Program End & Alarm Lamp Yes
RS 232 Yes
Work Lamp Yes
Machining Leveling Pads Yes
Operator Manuals Yes
EMC Yes
Safety Module Yes
MAIN FEATURES
49.21"X 59" indexing table as standard
0.001degree continuous rotary table
Rigid spindle with 2,500rpm, ISO#50
2 steps speed changer at high speed output.
Spindle quill diameter 4.3"
W axis travel 20"
AC servo motor provides extremely high torque, power and axis force
Meehanite cast iron construction provides excellent mechanical stability
Hardened and ground guide ways on X/Y axis allows max torque on the spindle
C3 double nuts high class precision ball screws are fitted
Large working table allows big working piece machining
Optional Linear scales on axes and angle encoder on B axis for absolute positioning accuracy
ATC with 60 tools as a basic selection; more tool pockets are available
Mechanical counterweight offers headstock stability
MPG Box
Spindle oil chiller
Auto power off
Chip auger for table & chip conveyor
Automatic central lubrication system
Coolant system with check valve
Low voltage circuit control system
Program end & alarm lamp
RS232 interface
Work lamp
MPG box
Machining leveling plate
Operation manual
OPTIONAL ACCESSORIES INCLUDED:
Fagor 8065 Control with 15" High resolution color LCD monitor
Servo driver 0.001°, full CNC Simultaneously controlled continuous rotary table.
X/Y/Z/W Travel:80"/72"/56"/20" (2000/1800/1400/500mm)
Solid one-piece casting base instead of out-bound supports
2 speed, high torque ZF planetary gearbox on spindle for heavy duty work at low speed
2500 rpm spindle with ISO#50 taper
Optional Renishaw Probe package:
Tool setting probe Renishaw OTS
Work piece probe Renishaw RMP-60
Linear Scales on X/Y/Z axis and angle encoder on B axis for absolute positioning accuracy
4-Roller Liner Guard Way On Z Axis
Hardened and ground guide ways on Y axis allows max torque on the spindle
Full enclosure flash guard with working station
60 position ATC mounted on machine to avoid any misalignment
12" Spindle sleeve as standard accessory
300 PSI Through spindle coolant and guard system for CTS
Heavy duty telescopic way cover for sub-supporter guide ways
chip conveyor combines with Chip auger for maximum chip handling
